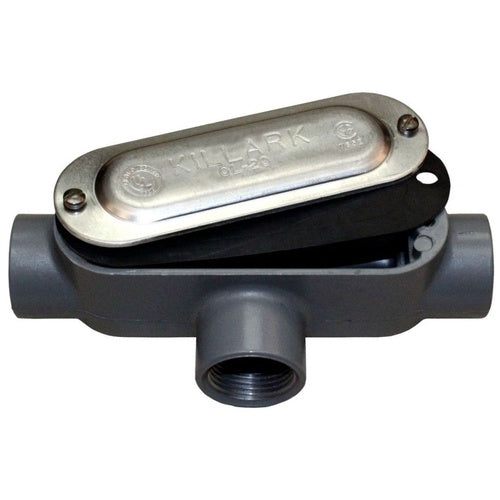

Killark OT-3CG 1" Aluminum T-Type Conduit Body

Product Specifications

• UPC: 78393604936
• Hub Size: 1 Inch
• Size: 7-1/8 Inch L x 2-9/16 Inch W x 2 Inch H
• Installation: Threaded (IMC/Rigid)
• Material: Electrostatically Applied Powder Coated Copper Free Aluminum
• Form Type: Form 5
• Approval: UL, CSA
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard Federal Specification W-C-586D/A-A 50563; Includes Cover, Gasket
• Catalog Number: OT-3CG
• Brand Name: DURALOY[R], K-PAK[R]
• Model: O/5
• Access Opening: Tee Side
• Configuration: T
• Cover Type: Stamped and Cast Stainless Steel Screw-On
• Hub Location: Tee
• Number Of Hubs: 3
• Catalog Description: O SERIES/DURALOY 5 SERIES ALUMINUM CONDUIT BODY WITH COVER AND GASKET- T TYPE - HUB SIZE 1" - VOLUME 12.0 CU IN
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Electrostatically Applied Powder Coated Copper Free Aluminum Material; 7-1/8 Inch L X 2-9/16 Inch W X 2 Inch H Size; Rigid Conduit/Imc Used on; 1 Inch Hub Size; Threaded (Imc/Rigid) Installation; T Configuration; 3 Hub(S); UL, CSA Approval; Stamped and Cast Stainless Steel Screw-on Cover Type; Tee Hub Location; Form 5 Form Type; Tee Side Access Opening; DURALOY[R]5, K-PAK[R] Brand; Applicable Standard Federal Specification W-C-586D/A-A 50563; Includes Cover, Gasket; O/5 Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 783936049366
• SKU Name: klrk ot3cg
