Overview

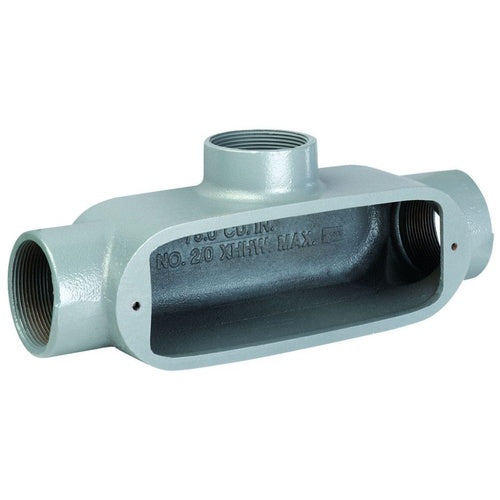

Killark OT-9 3-1/2" Aluminum T-Type Conduit Body

Product Specifications

• UPC: 78393653009
• Hub Size: 3-1/2 Inch
• Size: 18-1/8 Inch L x 5-1/2 Inch W x 7-1/8 Inch H
• Installation: Threaded (IMC/Rigid)
• Material: Electrostatically Applied Powder Coated Copper Free Aluminum
• Form Type: Form 5
• Approval: UL, CSA
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard Federal Specification W-C-586D/A-A 50563
• Catalog Number: OT-9
• Brand Name: DURALOY[R]
• Model: O/5
• Access Opening: Side
• Configuration: T
• Cover Type: Stamped and Cast Stainless Steel Screw-On
• Hub Location: Tee
• Number Of Hubs: 3
• Catalog Description: 3-1/2" T HUB, ALUMINUM O SERIES CONDUIT BODY
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Electrostatically Applied Powder Coated Copper Free Aluminum Material; 18-1/8 Inch L X 5-1/2 Inch W X 7-1/8 Inch H Size; Rigid Conduit/Imc Used on; 3-1/2 Inch Hub Size; Threaded (Imc/Rigid) Installation; T Configuration; 3 Hub(S); UL, CSA Approval; Stamped and Cast Stainless Steel Screw-on Cover Type; Tee Hub Location; Form 5 Form Type; Side Access Opening; DURALOY[R]5 Brand; Applicable Standard Federal Specification W-C-586D/A-A 50563; O/5 Model
• Manufacturer: KILLARK ELECTRIC MANUFACTURING CO.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 783936530093
• SKU Name: klrk ot9
