Overview

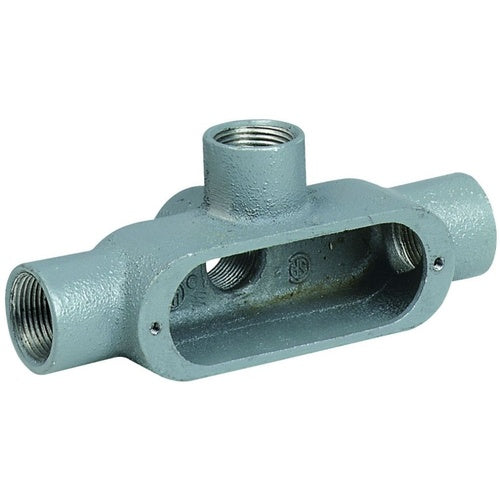

Killark OTA-2 3/4" Aluminum TA-Type Conduit Body

Product Specifications

• UPC: 78393653026
• Hub Size: 3/4 Inch
• Size: 6-1/16 Inch L x 2-15/16 Inch W x 2-3/16 Inch H
• Installation: Threaded (IMC/Rigid)
• Material: Electrostatically Applied Powder Coated Copper Free Aluminum
• Approval: UL, CSA
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard Federal Specification W-C-586D/A-A 50563
• Catalog Number: OTA-2
• Brand Name: DURALOY[R]
• Model: O/5
• Access Opening: Side
• Configuration: TA
• Cover Type: Stamped and Cast Stainless Steel Screw-On
• Hub Location: Tee
• Number Of Hubs: 4
• Catalog Description: 3/4" TA HUB, ALUMINUM O SERIES CONDUIT BODY
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Electrostatically Applied Powder Coated Copper Free Aluminum Material; 6-1/16 Inch L X 2-15/16 Inch W X 2-3/16 Inch H Size; Rigid Conduit/Imc Used on; 3/4 Inch Hub Size; Threaded (Imc/Rigid) Installation; Ta Configuration; 4 Hub(S); UL, CSA Approval; Stamped and Cast Stainless Steel Screw-on Cover Type; Tee Hub Location; Side Access Opening; DURALOY[R]5 Brand; Applicable Standard Federal Specification W-C-586D/A-A 50563; O/5 Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 783936530260
• SKU Name: klrk ota2

Resources

• Manufacturer Spec Sheet
• Technical Drawing
