Overview

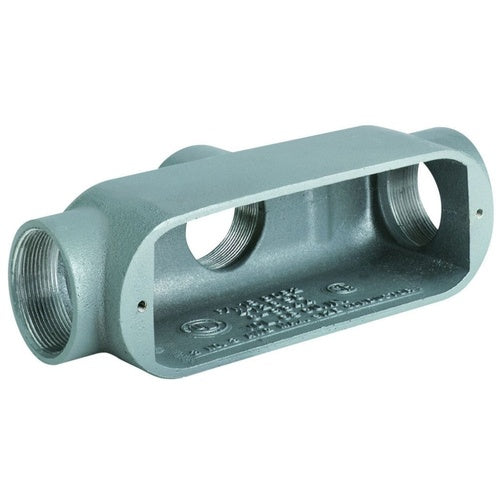

Killark OTB-2M Conduit Body

Product Specifications

• UPC: 78393648086
• Hub Size: 3/4 Inch
• Size: 6-1/16 Inch L x 1-9/16 Inch W x 2-5/16 Inch H
• Installation: Threaded (IMC/Rigid)
• Material: Electrostatically Applied Powder Coated Over Electro Zinc and Chromate Sealant Malleable Iron
• Form Type: Form 5
• Approval: UL, CSA
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard Federal Specification W-C-586D/A-A 50563
• Catalog Number: OTB-2M
• Brand Name: DURALOY[R]
• Model: O/5
• Access Opening: Tee Back
• Configuration: TB
• Cover Type: Stamped and Cast Stainless Steel Screw-On
• Hub Location: Tee
• Number Of Hubs: 3
• Catalog Description: 3/4" TB HUB, IRON O SERIES CONDUIT BODY
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Electrostatically Applied Powder Coated Over Electro Zinc and Chromate Sealant Malleable Iron Material; 6-1/16 Inch L X 1-9/16 Inch W X 2-5/16 Inch H Size; Rigid Conduit/Imc Used on; 3/4 Inch Hub Size; Threaded (Imc/Rigid) Installation; TB Configuration; 3 Hub(S); UL, CSA Approval; Stamped and Cast Stainless Steel Screw-on Cover Type; Tee Hub Location; Form 5 Form Type; Tee Back Access Opening; DURALOY[R]5 Brand; Applicable Standard Federal Specification W-C-586D/A-A 50563; O/5 Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 783936480862
• SKU Name: klrk otb2m

Resources

• Manufacturer Spec Sheet
