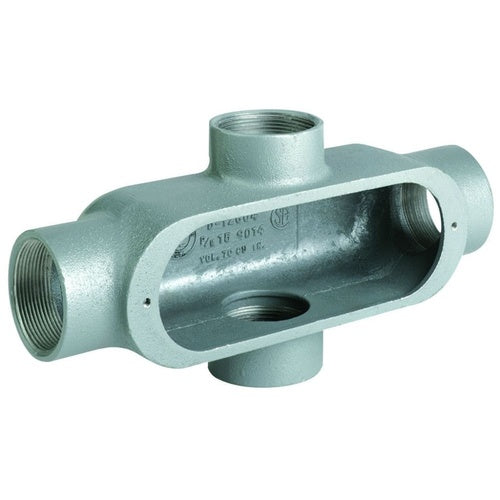

Killark OX-5M Conduit Body

Overview

Killark OX-5M Conduit Body

Product Specifications

• UPC: 78393648095
• Hub Size: 1-1/2 Inch
• Size: 9-3/16 Inch L x 2-3/4 Inch W x 4-1/2 Inch H
• Installation: Threaded (IMC/Rigid)
• Material: Electrostatically Applied Powder Coated Over Electro Zinc and Chromate Sealant Malleable Iron
• Form Type: Form 5
• Approval: UL, CSA
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard Federal Specification W-C-586D/A-A 50563
• Catalog Number: OX-5M
• Brand Name: DURALOY[R]
• Model: O/5
• Access Opening: Side
• Configuration: X
• Cover Type: Stamped and Cast Stainless Steel Screw-On
• Hub Location: Cross
• Number Of Hubs: 4
• Catalog Description: 1-1/2" X HUB, IRON O SERIES CONDUIT BODY
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Electrostatically Applied Powder Coated Over Electro Zinc and Chromate Sealant Malleable Iron Material; 9-3/16 Inch L X 2-3/4 Inch W X 4-1/2 Inch H Size; Rigid Conduit/Imc Used on; 1-1/2 Inch Hub Size; Threaded (Imc/Rigid) Installation; X Configuration; 4 Hub(S); UL, CSA Approval; Stamped and Cast Stainless Steel Screw-on Cover Type; Cross Hub Location; Form 5 Form Type; Side Access Opening; DURALOY[R]5 Brand; Applicable Standard Federal Specification W-C-586D/A-A 50563; O/5 Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 783936480954
• SKU Name: klrk ox5m

Resources

• Manufacturer Spec Sheet
