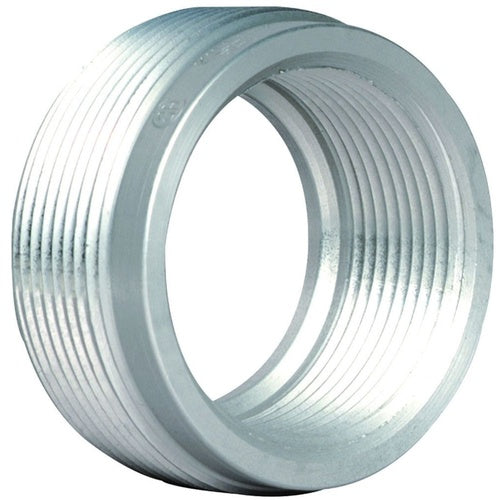

Killark R-104 4X1-1/4 Explosion-Proof Reducer

Overview

Killark R-104 4X1-1/4 Explosion-Proof Reducer

Product Specifications

• UPC: 78393656530
• Catalog Number: R-104
• Model: R
• Large End Trade Size: 4 Inch
• Small End Trade Size: 1-1/4 Inch
• Length: 1-1/2 Inch
• Enclosure: Class I Div 1 and 2 Group A B C D, Class I Zone 1 Group IIA IIB IIC, Class II Div 1 and 2 Group E F G
• Material: Copper Free Aluminum
• Approval: UL 886, CSA C22.2
• Catalog Description: 4" TO 1-1/4" REDUCING BUSHING, ALUMINUM
• Category: Rigid Conduit Fittings - Aluminum
• Full Technical Description: Copper Free Aluminum Material; 1-1/2 Inch; 1-1/4 Inch Small End Trade Size; 4 Inch Large End Trade Size; UL 886, CSA C22.2 Approval; Class I Div 1 and 2 Group A B C D, Class I Zone 1 Group Iia Iib Iic, Class II Div 1 and 2 Group E F G Enclosure; R Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Reducer Bushing
• Unspsc: 39131708
• UPC 12 Digit: 783936565309
• SKU Name: klrk r104

Resources

• Manufacturer Spec Sheet
