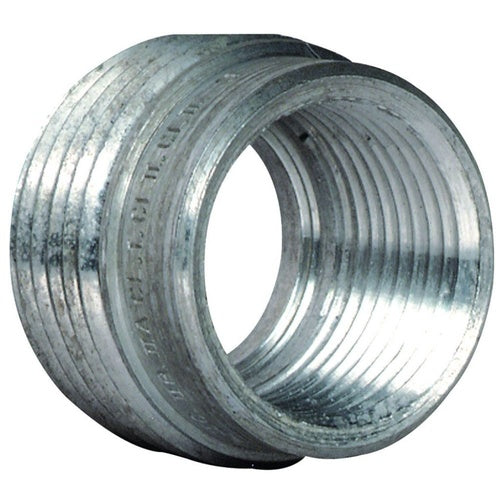

Killark RE54S Reducer

Overview

Killark RE54S Reducer

Product Specifications

• UPC: 78393601090
• Approval: UL 886, CSA C22.2
• Additional Information: Constructional Feature Explosionproof; Application Hazardous Location; Used On Rigid/IMC Conduit System; Applicable Standard ATEX, IECEx
• Catalog Number: RE54S
• Model: RE
• Type: Threaded, Slip
• Large End Trade Size: 1-1/2 Inch
• Small End Trade Size: 1-1/4 Inch
• Length: 1-1/64 Inch
• Enclosure: Class I Div 1 and 2 Group A B C D, Class I Zone 1 Group IIA IIB IIC, Class II Div 1 and 2 Group E F G
• Material: Glossy Gray Zinc Plated Steel
• Catalog Description: 1-1/2" TO 1-1/4" REDUCING BUSHING, STEEL (ZINC PLATED)
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Threaded, Slip Type; Glossy Gray Zinc Plated Steel Material; 1-1/64 Inch; 1-1/4 Inch Small End Trade Size; 1-1/2 Inch Large End Trade Size; UL 886, CSA C22.2 Approval; Class I Div 1 and 2 Group A B C D, Class I Zone 1 Group Iia Iib Iic, Class II Div 1 and 2 Group E F G Enclosure; Constructional Feature Explosionproof; Application Hazardous Location; Used on Rigid/Imc Conduit System; Applicable Standard ATEX, Iecex; RE Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Reducer Bushing
• Unspsc: 39131708
• UPC 12 Digit: 783936010908
• SKU Name: klrk re54s

Resources

• Manufacturer Spec Sheet
