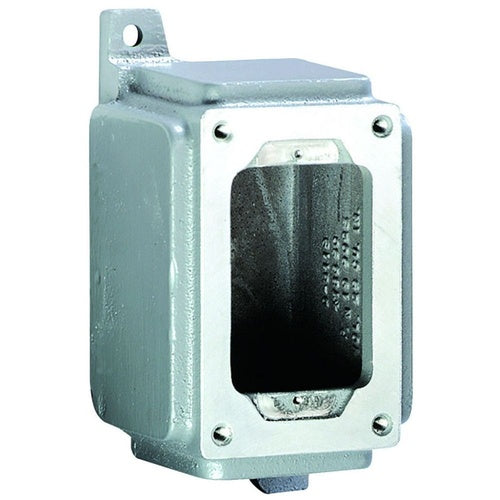

Killark SWB-49 3/4" Explosion-Proof Box

Overview

Killark SWB-49 3/4" Explosion-Proof Box

Product Specifications

• UPC: 78393663139
• Shape: Shallow
• Mounting Hardware: (2) Lugs
• Approval: UL, CSA
• Catalog Number: SWB-49
• Model: SWB
• Height: 5-1/4 Inch
• Width: 3-5/8 Inch
• Depth: 3-5/16 Inch
• Number Of Gangs: 1
• Hub Size: 3/4 Inch
• Material: Cast Copper Free Aluminum Alloy
• Catalog Description: SWB SERIES - ALUMINUM SINGLE-GANG DEVICE BODY FOR USE WITH XCS/XS/XT COVER ASSEMBLIES - HUB SIZE 3/4 INCH (TWO ON BOTTOM)
• Category: Cast Boxes
• Full Technical Description: Cast Copper Free Aluminum Alloy Material; 3-5/8 Inch; 5-1/4 Inch; 3-5/16 Inch; Shallow Shape; 3/4 Inch Hub Size; 1 Gang(S); UL, CSA Approval; (2) Lugs Mounting Hardware; SWB Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Cast Device Box
• Unspsc: 39122216
• UPC 12 Digit: 783936631394
• SKU Name: klrk swb49

Resources

• Manufacturer Spec Sheet
