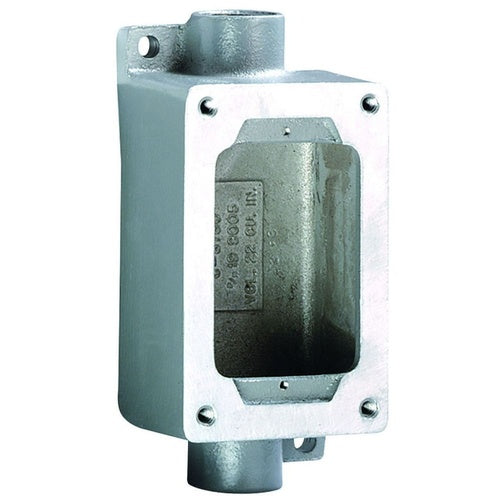

Killark SWB-5 3/4" Explosion-Proof Box

Overview

Killark SWB-5 3/4" Explosion-Proof Box

Product Specifications

• UPC: 78393663005
• Enclosure: Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group IIA, IIB, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7C/7D/9E/9F/9G
• Size: 3 Inch Width x 2-1/4 Inch Depth x 5-7/8 Inch Height
• Mounting: Lug
• Used On: Control Station External Sealing Required
• Approval: UL, CSA
• Additional Information: Application Hazardous Location, Petroleum Refineries, Chemical and Petrochemical Plant, Remote Control of Motor
• Catalog Number: SWB-5
• Model: SWB
• Type: Feed-Through
• Number Of Gangs: 1
• Construction: Deep
• Number Of Hubs: 2
• Hub Size: 3/4 Inch
• Material: Cast Copper-Free Aluminum Alloy
• Catalog Description: SWB SERIES - ALUMINUM FEED-THRU SINGLE-GANG DEVICE BODY FOR USE WITH XCS/XS/XT COVER ASSEMBLIES - HUB SIZE 3/4 INCH - 5-7/8 INCH X 3 INCH X 2-1/4 INCH
• Category: Junction, Surface, & Back Boxes
• Full Technical Description: Feed-Through Type; Cast Copper-Free Aluminum Alloy Material; 3 Inch Width X 2-1/4 Inch Depth X 5-7/8 Inch Height Size; Control Station External Sealing Required Used on; 3/4 Inch Hub Size; 2 Hub(S); 1 Gang(S); UL, CSA Approval; Lug Mounting; Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group Iia, Iib, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7C/7D/9E/9F/9G Enclosure; Deep Construction; Application Hazardous Location, Petroleum Refineries, Chemical and Petrochemical Plant, Remote Control of Motor; SWB Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Control Station Box
• Unspsc: 39122216
• UPC 12 Digit: 783936630052
• SKU Name: klrk swb5
