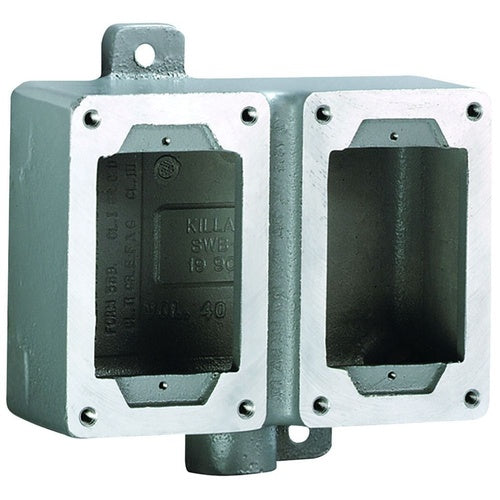

Killark SWB-9 1" Explosion-Proof Box

Overview

Killark SWB-9 1" Explosion-Proof Box

Product Specifications

• UPC: 78393663009
• Hub Location: Bottom
• Hub Size: 1 Inch
• Material: Cast Copper Free Aluminum Alloy
• Shape: Shallow
• Mounting Hardware: (2) Lugs
• Approval: UL, CSA
• Catalog Number: SWB-9
• Model: SWB
• Type: Dead End
• Height: 5-7/8 Inch
• Width: 6-1/2 Inch
• Depth: 2-1/4 Inch
• Number Of Gangs: 2
• Number Of Hubs: 1
• Catalog Description: SWB SERIES - ALUMINUM DEAD-END DOUBLE-GANG DEVICE BODY FOR USE WITH XCS/XS/XT COVER ASSEMBLIES - HUB SIZE 1 INCH
• Category: Junction, Surface, & Back Boxes
• Full Technical Description: Dead End Type; Cast Copper Free Aluminum Alloy Material; 6-1/2 Inch; 5-7/8 Inch; 2-1/4 Inch; Shallow Shape; 1 Inch Hub Size; 1 Hub(S); 2 Gang(S); UL, CSA Approval; (2) Lugs Mounting Hardware; Bottom Hub Location; SWB Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Cast Device Box
• Unspsc: 39122216
• UPC 12 Digit: 783936630090
• SKU Name: klrk swb9

Resources

• Manufacturer Spec Sheet
• Technical Line Drawing
