Overview

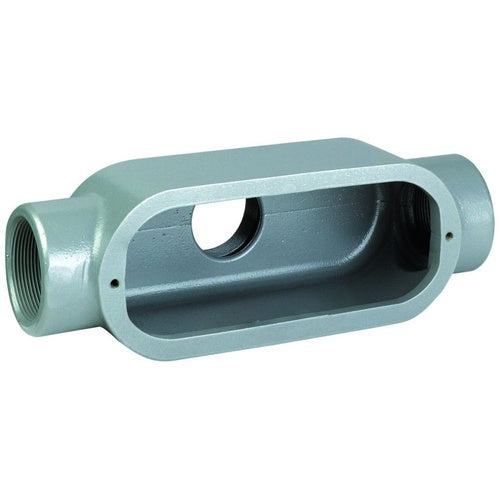

Killark TB38 Conduit Body

Product Specifications

• UPC: 78393648141
• Hub Size: 1 Inch
• Size: 7-9/16 Inch L x 2-25/32 Inch W x 1-27/32 Inch H
• Installation: Threaded (IMC/Rigid)
• Material: Electrostatically Applied Powder Coated Over Electro Zinc and Chromate Sealant Class 30 Gray Iron Alloy
• Form Type: Form 8
• Approval: UL, CSA
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard Federal Specification W-C-586D/A-A 50563
• Catalog Number: TB38
• Brand Name: DURALOY[R]
• Model: 8
• Access Opening: Back
• Configuration: TB
• Cover Type: Stamped and Cast Stainless Steel Screw-On
• Hub Location: Tee Back
• Number Of Hubs: 3
• Catalog Description: 1" TB HUB, IRON DURALOY 8 CONDUIT BODY
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Electrostatically Applied Powder Coated Over Electro Zinc and Chromate Sealant Class 30 Gray Iron Alloy Material; 7-9/16 Inch L X 2-25/32 Inch W X 1-27/32 Inch H Size; Rigid Conduit/Imc Used on; 1 Inch Hub Size; Threaded (Imc/Rigid) Installation; TB Configuration; 3 Hub(S); UL, CSA Approval; Stamped and Cast Stainless Steel Screw-on Cover Type; Tee Back Hub Location; Form 8 Form Type; Back Access Opening; DURALOY[R]8 Brand; Applicable Standard Federal Specification W-C-586D/A-A 50563; 8 Model
• Manufacturer: KILLARK ELECTRIC MANUFACTURING CO.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 783936481418
• SKU Name: klrk tb38

Resources

• Manufacturer Spec Sheet
• Technical Drawing
