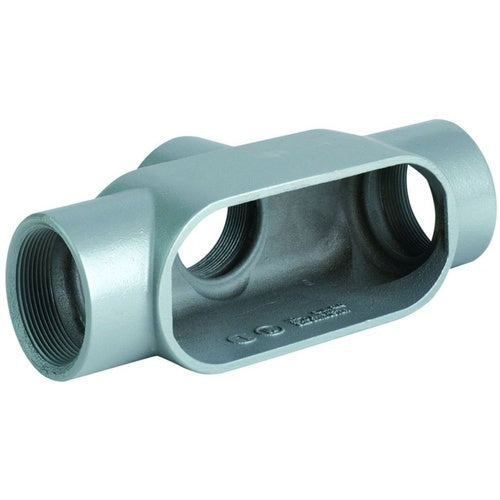

Killark TB57 1-1/2" Hub TB-Type Conduit Body

Overview

Killark TB57 1-1/2" Hub TB-Type Conduit Body

Product Specifications

• UPC: 78393601184
• Hub Size: 1-1/2 Inch
• Size: 8-7/16 Inch L x 3-3/4 Inch W x 3-3/4 Inch H
• Installation: Threaded (IMC/Rigid)
• Material: Electrostatically Applied Powder Coated Over Electro Zinc and Chromate Sealant Class 30 Gray Iron Alloy
• Form Type: Form 7
• Approval: UL, CSA
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard Federal Specification W-C-586D/A-A 50563
• Catalog Number: TB57
• Brand Name: DURALOY[R]
• Model: 7
• Access Opening: Back
• Configuration: TB
• Cover Type: Stainless Steel
• Hub Location: Tee Back
• Number Of Hubs: 3
• Catalog Description: 1-1/2" TB HUB, IRON DURALOY 7 CONDUIT BODY,
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Electrostatically Applied Powder Coated Over Electro Zinc and Chromate Sealant Class 30 Gray Iron Alloy Material; 8-7/16 Inch L X 3-3/4 Inch W X 3-3/4 Inch H Size; Rigid Conduit/Imc Used on; 1-1/2 Inch Hub Size; Threaded (Imc/Rigid) Installation; TB Configuration; 3 Hub(S); UL, CSA Approval; Stainless Steel Cover Type; Tee Back Hub Location; Form 7 Form Type; Back Access Opening; DURALOY[R]7 Brand; Applicable Standard Federal Specification W-C-586D/A-A 50563; 7 Model
• Manufacturer: KILLARK ELECTRIC MANUFACTURING CO.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 783936011844
• SKU Name: klrk tb57

Resources

• Manufacturer Spec Sheet
• Technical Drawing
