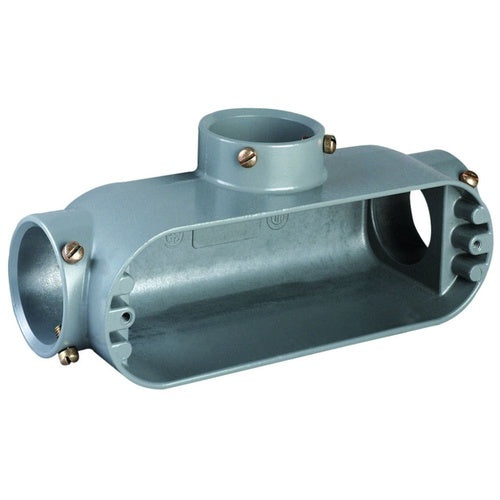

Killark TWOT-2 3/4" T-Type Conduit Body Thinwall

Overview

Killark TWOT-2 3/4" T-Type Conduit Body Thinwall

Product Specifications

• UPC: 78393665023
• Size: 5-3/4 Inch L x 1-1/2 Inch W x 2-5/16 Inch H
• Installation: Set Screw (EMT)
• Material: Electrostatically Applied Powder Coated Copper Free Aluminum
• Approval: UL, CSA
• Used On: EMT Conduit
• Catalog Number: TWOT-2
• Model: TWO
• Access Opening: Side
• Configuration: T
• Cover Type: Aluminum, Steel/Iron
• Hub Location: Tee
• Number Of Hubs: 3
• Hub Size: 3/4 Inch
• Catalog Description: TWO SERIES - ALUMINUM CONDUIT BODY - T TYPE - HUB SIZE 3/4 INCH - VOLUME 6.0 CUBIC INCHES
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Electrostatically Applied Powder Coated Copper Free Aluminum Material; 5-3/4 Inch L X 1-1/2 Inch W X 2-5/16 Inch H Size; EMT Conduit Used on; 3/4 Inch Hub Size; Set Screw (EMT) Installation; T Configuration; 3 Hub(S); UL, CSA Approval; Aluminum, Steel/Iron Cover Type; Tee Hub Location; Side Access Opening; TWO Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 783936650234
• SKU Name: klrk twot2
