Overview

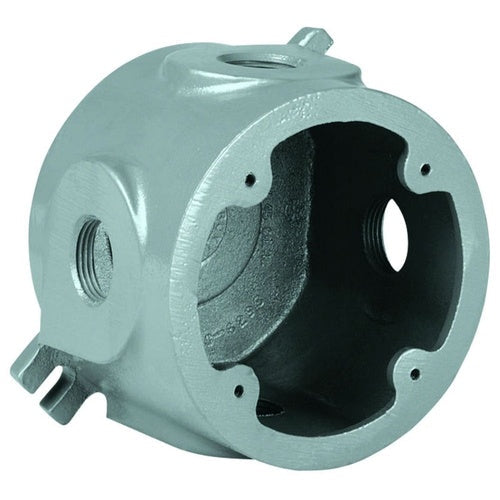

Killark VLJDX-2 3/4" V/T Junction Box

Product Specifications

• UPC: 78393678002
• Shape: Round
• Material: Copper Free Aluminum
• Finish: Electrostatically Applied Powder Coated
• Mounting Hardware: (2) Lug
• Approval: UL, CSA
• Additional Information: Application Wet and Damp Location; Volume Rating 45 Cu Inch
• Catalog Number: VLJDX-2
• Model: VLJDX
• Type: Deep
• Depth: 3-5/8 Inch
• Number Of Hubs: 4
• Hub Location: (4) Side
• Hub Size: 3/4 Inch
• Number Of Plugs: 3
• Catalog Description: VJ SERIES - ALUMINUM OUTLET BOX WITH LUGS - DEEP/3-5/8 IN - HUB SIZE 3/4 IN
• Category: Steel Outlet Boxes
• Full Technical Description: Deep Type; Copper Free Aluminum Material; Electrostatically Applied Powder Coated Finish; 3-5/8 Inch; Round Shape; 3/4 Inch Hub Size; 4 Hub(S); UL, CSA Approval; (2) Lug Mounting Hardware; 3 Plug(S); (4) Side Hub Location; Application Wet and Damp Location; Volume Rating 45 Cu Inch; VLJDX Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Cast Round Outlet Box
• Unspsc: 39121308
• UPC 12 Digit: 783936780023
• SKU Name: klrk vljdx2

Resources

• Manufacturer Spec Sheet
