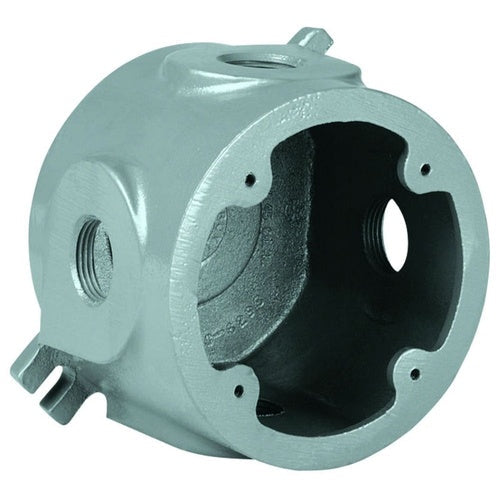

Killark VLJDX-3 1" V/T Junction Box

Overview

Killark VLJDX-3 1" V/T Junction Box

Product Specifications

• UPC: 78393678003
• Number Of Hubs: 4
• Hub Location: (4) SIDE
• Hub Size: 1 INCH
• Number Of Plugs: 3
• Shape: ROUND
• Material: COPPER FREE ALUMINUM
• Finish: ELECTROSTATICALLY APPLIED POWDER COATED
• Mounting: CEILING
• Mounting Hardware: (2) LUGS
• Approval: UL, CSA
• Catalog Number: VLJDX-3
• Diameter In Inch Uom: in
• Depth In Inch Uom: in
• Additional Information: VOLUME CUBIC INCH 45
• Brand Name: KILLARK[R]
• Model: VJ
• Type: DEEP
• Diameter: 4 1/2 INCH
• Diameter In Inch: 4.5
• Depth: 3 5/8 INCH
• Depth In Inch: 3.625
• Catalog Description: VJ SERIES - ALUMINUM OUTLET BOX WITH LUGS - DEEP/3-5/8 IN - HUB SIZE 1 IN
• Category: Steel Outlet Boxes
• Full Technical Description: Deep Type; Copper Free Aluminum Material; Electrostatically Applied Powder Coated Finish; 3 5/8 Inch; 3.625 Depth in Inch; 4.5 Diameter in Inch; Round Shape; 1 Inch Hub Size; 4 Hub(S); UL, CSA Approval; 4 1/2 Inch Diameter; Ceiling Mounting; (2) Lugs Mounting Hardware; 3 Plug(S); (4) Side Hub Location; KILLARK[R] Brand; Volume Cubic Inch 45; Depth in Inch - Uom in; Diameter in Inch - Uom in; VJ Model
• Manufacturer: KILLARK ELECTRIC MANUFACTURING CO.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Cast Round Outlet Box
• Unspsc: 39121308
• UPC 12 Digit: 783936780030
• SKU Name: klrk vljdx3
