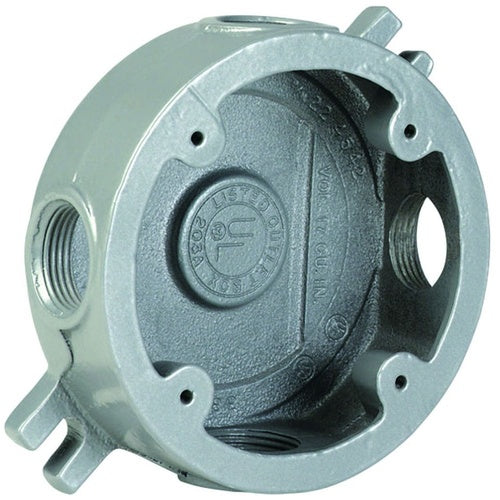

Killark VLJSX-2 3/4" V/T Junction Box

Overview

Killark VLJSX-2 3/4" V/T Junction Box

Product Specifications

• UPC: 78393678006
• Shape: Round
• Material: Copper Free Aluminum
• Finish: Electrostatically Applied Powder Coated
• Mounting Hardware: (2) Lug
• Approval: UL, CSA
• Additional Information: Application Wet and Damp Location; Volume Rating 17 Cu Inch
• Catalog Number: VLJSX-2
• Model: VLJSX
• Type: Shallow
• Depth: 1-5/8 Inch
• Number Of Hubs: 4
• Hub Location: (4) Side
• Hub Size: 3/4 Inch
• Number Of Plugs: 3
• Catalog Description: VJ SERIES ALUMINUM OUTLET BOX WITH LUGS - SHALLOW 1-?" - HUB SIZE "
• Category: Steel Outlet Boxes
• Full Technical Description: Shallow Type; Copper Free Aluminum Material; Electrostatically Applied Powder Coated Finish; 1-5/8 Inch; Round Shape; 3/4 Inch Hub Size; 4 Hub(S); UL, CSA Approval; (2) Lug Mounting Hardware; 3 Plug(S); (4) Side Hub Location; Application Wet and Damp Location; Volume Rating 17 Cu Inch; VLJSX Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Cast Round Outlet Box
• Unspsc: 39121308
• UPC 12 Digit: 783936780061
• SKU Name: klrk vljx2

Resources

• Manufacturer Spec Sheet
