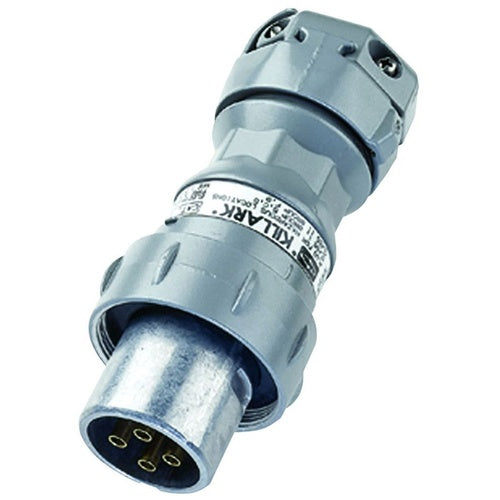

Killark VP6475 60A 4W4P Plug

Overview

Killark VP6475 60A 4W4P Plug

Product Specifications

• UPC: 78393683451
• Maximum Cable Outer Diameter: 1.5 Inch
• Material: Electrostatically Applied Polyester/Epoxy Painted Copper Free Aluminum
• Enclosure: Class I Div 1 and 2 Group B C D, Class I Zone 1 and 2 IIA IIB+H2, Class II Div 1 and 2 Group F G, Class III, NEMA 3/4/4X/12/7B/7C/7D/9F/9G
• Approval: UL, CSA
• Catalog Number: VP6475
• Brand Name: VERSAMATE[R]
• Model: VP
• Voltage Rating: 600 VAC, 250 VDC
• Current Rating: 60 Ampere
• Number Of Poles: 4
• Number Of Wires: 4
• Minimum Cable Outer Diameter: 0.65 Inch
• Catalog Description: 60A 4 POLE 4 WIRE PLUG ASSEMBLY
• Category: Lighting Accessories
• Full Technical Description: Electrostatically Applied Polyester/Epoxy Painted Copper Free Aluminum Material; 0.65 Inch min. Cable Outer Diameter; 1.5 Inch Max. Cable Outer Diameter; 4 Wire(S); UL, CSA Approval; 600 VAC, 250 VDC Voltage Rating; Class I Div 1 and 2 Group B C D, Class I Zone 1 and 2 Iia IIB+H2, Class II Div 1 and 2 Group F G, Class III, NEMA 3/4/4X/12/7B/7C/7D/9F/9G Enclosure; 60 Ampere Current Rating; 4 Pole(S); VERSAMATE[R] Brand; VP Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Pin And Sleeve Plug
• Unspsc: 39121402
• UPC 12 Digit: 783936834511
• SKU Name: klrk vp6475

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
