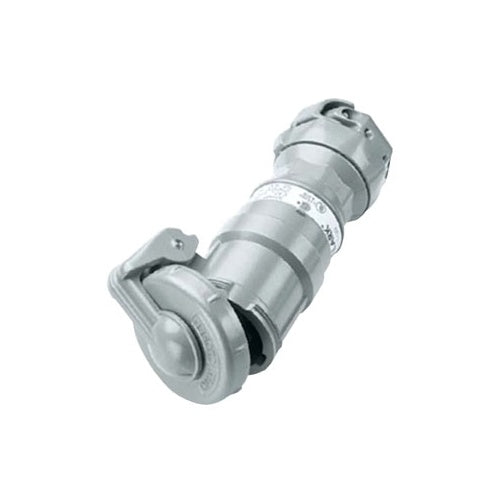

Killark VPR3465 4P 3W 30A Connector

Overview

Killark VPR3465 4P 3W 30A Connector

Product Specifications

• UPC: 78393683426
• Material: Copper Free Aluminum
• Approval: UL, CSA
• Additional Information: Size 7-17/32 Inch L x 3-1/16 Inch H
• Catalog Number: VPR3465
• Brand Name: VERSAMATE[R]
• Voltage Rating: 600 VAC/250 VDC
• Current Rating: 30 Ampere
• Number Of Poles: 4
• Number Of Wires: 3
• Minimum Cable Outer Diameter: 0.55 Inch
• Maximum Cable Outer Diameter: 1.2 Inch
• Catalog Description: 30A 3W4P CONNECTOR ASSEMBLY
• Category: Pin & Sleeve Devices
• Full Technical Description: Copper Free Aluminum Material; 0.55 Inch min. Cable Outer Diameter; 1.2 Inch Max. Cable Outer Diameter; 3 Wire(S); UL, CSA Approval; 600 Vac/250 VDC Voltage Rating; 30 Ampere Current Rating; 4 Pole(S); VERSAMATE[R] Brand; Size 7-17/32 Inch L X 3-1/16 Inch H
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Pin and Sleeve Connector
• Unspsc: 39121406
• UPC 12 Digit: 783936834269
• SKU Name: klrk vpr3465

Resources

• Manufacturer Spec Sheet
