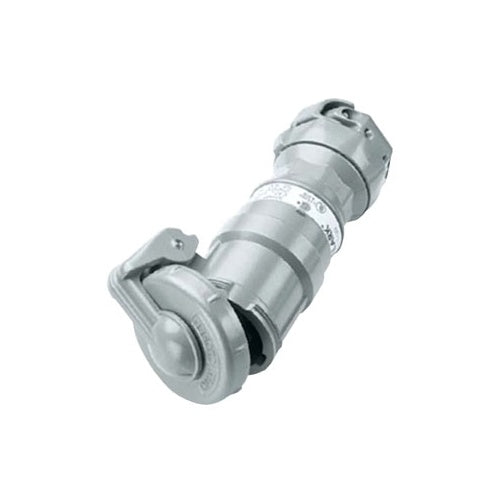

Killark VPR6255 2P 2W 30A Connector

Overview

Killark VPR6255 2P 2W 30A Connector

Product Specifications

• Application: VERSAMATE metallic pin and sleeve connectors are designed for heavy duty industrial use. These devices supply power to both fixed and portable electrical equipment including pumps, generators, welders, vacuums, blowers, and similar apparatus. Suitable for indoor or outdoor use. Applications include the wet, cold, hosedown, hazardous, or corrosive areas in such industrial applications as: pulp and paper mills; electrical power plants; petrochemical plants; wastewater treatment; marine, docks, ports; construction sites; breweries; refineries; chemical plants; grain facilities; textile manufacturing; and food processing facilities.
• Special Features: Octagonal style (patented) for a firm and sure grip when connecting or disconnecting is featured on both plug and cable connector bodies. Insulators have high mechanical and dielectric strength and Low Arc Tracking. Increased Safety type box terminals with gripper ribs securely clamp around conductors. Funneled conductor entry chambers lead all properly stripped conductors into terminals simultaneously. NEMA 4X rating when inserted into VERSAMATE receptacle and locking ring is tightened.
• Standard: UL, CSA
• Sub Brand: VERSAMATE
• Type: Aluminum NEMA 4X metallic connector
• Voltage Rating: 600//250 VAC//VDC
• Wire Size: Regular stranding: #6-#4; extra flex: #6-#4
• Brand Name: KILLARK
• Color: Gray
• Environmental Conditions: Wet and hazardous locations
• Material: Copper-Free Aluminum
• Nema Rating: NEMA 3, 4, 4X
• Number Of Poles: 2
• Number Of Wires: 2
• Size: 4-3/8 H x 3 W x 9-11/16 D
• Catalog Description: 60A 2W2P CONNECTOR ASSEMBLY
• Category: Pin & Sleeve Devices
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Pin And Sleeve Connector
• Unspsc: 39121406
• UPC 12 Digit: 783936834405
• SKU Name: klrk vpr6255
