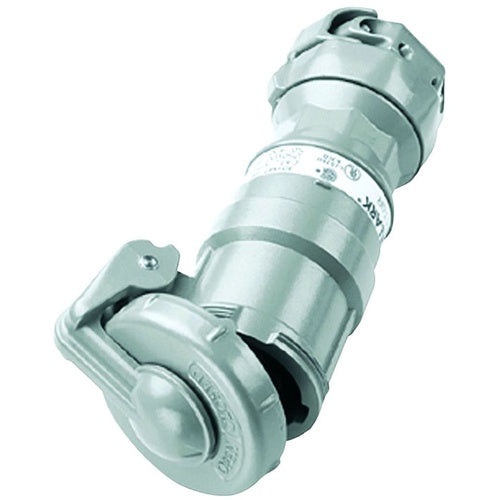

Killark VPR6465 4P 3W 60A Connector

Overview

Killark VPR6465 4P 3W 60A Connector

Product Specifications

• UPC: 78393683449
• Additional Information: Overall Dimension 9-11/16 Inch Width x 4-3/8 Inch Height; Wire Size 6 to 2 AWG; Grommet Range 0.65 to 1.5 Inch; Enclosure Rating NEMA 3/4; Applications Pulp and Paper Mill, Electrical Power Plant, Petrochemical Plant, Wastewater Treatment, Marine, Docks,
• Catalog Number: VPR6465
• Brand Name: Versamate[R]
• Voltage Rating: 600 Volt AC, 250 Volt DC
• Current Rating: 60 Amp
• Number Of Poles: 4
• Number Of Wires: 3
• Grounding Style: 2
• Approval: UL, CSA
• Catalog Description: 60A 3W4P CONNECTOR ASSEMBLY
• Category: Pin & Sleeve Devices
• Full Technical Description: 3 Wire(S); UL, CSA Approval; 600 Volt AC, 250 Volt DC Voltage Rating; 60 Amp Current Rating; 4 Pole(S); 2 Grounding Style; VERSAMATE[R] Brand; Overall Dimension 9-11/16 Inch Width X 4-3/8 Inch Height; Wire Size 6 to 2 AWG; Grommet Range 0.65 to 1.5 Inch; Enclosure Rating NEMA 3/4; Applications Pulp and Paper Mill, Electrical Power Plant, Petrochemical Plant, Wastewater Treatment, Marine, Docks, Port
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Pin and Sleeve Connector
• Unspsc: 39121406
• UPC 12 Digit: 783936834498
• SKU Name: klrk vpr6465

Resources

• Manufacturer Spec Sheet
