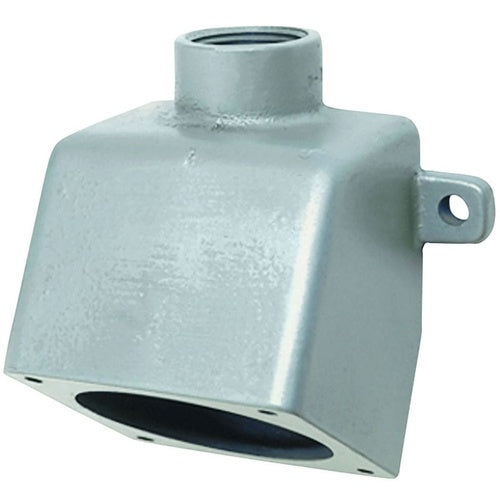

Killark VRE56 1-1/2" Back Box

Overview

Killark VRE56 1-1/2" Back Box

Product Specifications

• Brand Name: KILLARK
• Sub Brand: VERSAMATE
• Type: Aluminum splice box
• Wire Size: Regular stranding: #6-#4; extra flex: #6-#4
• Color: Gray
• Environmental Conditions: Wet and hazardous locations
• Material: Copper-Free Aluminum
• Mounting: Mounting holes
• Nema Rating: NEMA 3, 4, 4X
• Size: 6-13/32 H x 5-1/4 W x 4-7/8 D
• Special Features: Exclusive patented Breech-Lock cap serves as either flip lid or screw cover. Receptacle is NEMA 3R with lid snapped shut or NEMA 4X with lid turned shut or when VERSAMATE plug is inserted and locking ring tightened. Patented notch in cap arm holds cap open for easy plug insertion or maintenance. Patented pin design uses slotted spring clip which avoids excessive wear while providing continuous electrical pin to sleeve contact. VERSAMATE receptacles use the same Increased Safety terminals and funnel design as VERSAMATE plugs.
• Standard: UL, CSA
• Catalog Description: VERSAMATE SERIES - 60A, 1-1/2" DEAD-END BACK BOX
• Category: Pin & Sleeve Devices
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Pin And Sleeve Back Box
• Unspsc: 39121406
• UPC 12 Digit: 783936834566
• SKU Name: klrk vre56

Resources

• Manufacturer Spec Sheet
