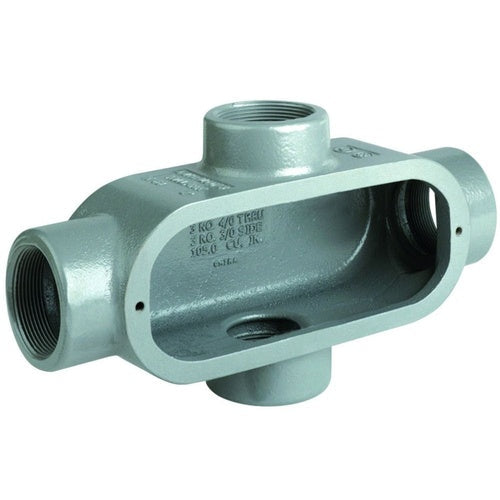

Killark X28 Conduit Body

Overview

Killark X28 Conduit Body

Product Specifications

• UPC: 78393648146
• Size: 6-9/16 Inch L x 2 Inch W x 3-15/16 Inch H
• Installation: Threaded (IMC/Rigid)
• Material: Electrostatically Applied Powder Coated Over Electro Zinc and Chromate Sealant Class 30 Gray Iron Alloy
• Form Type: Form 8
• Approval: UL, CSA
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard Federal Specification W-C-586D/A-A 50563
• Catalog Number: X28
• Brand Name: DURALOY[R]
• Model: 8
• Access Opening: Side
• Configuration: X
• Hub Location: Cross
• Number Of Hubs: 4
• Hub Size: 3/4 Inch
• Catalog Description: 3/4" X HUB, IRON DURALOY 8 CONDUIT BODY,
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Electrostatically Applied Powder Coated Over Electro Zinc and Chromate Sealant Class 30 Gray Iron Alloy Material; 6-9/16 Inch L X 2 Inch W X 3-15/16 Inch H Size; Rigid Conduit/Imc Used on; 3/4 Inch Hub Size; Threaded (Imc/Rigid) Installation; X Configuration; 4 Hub(S); UL, CSA Approval; Cross Hub Location; Form 8 Form Type; Side Access Opening; DURALOY[R]8 Brand; Applicable Standard Federal Specification W-C-586D/A-A 50563; 8 Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 783936481463
• SKU Name: klrk x28
