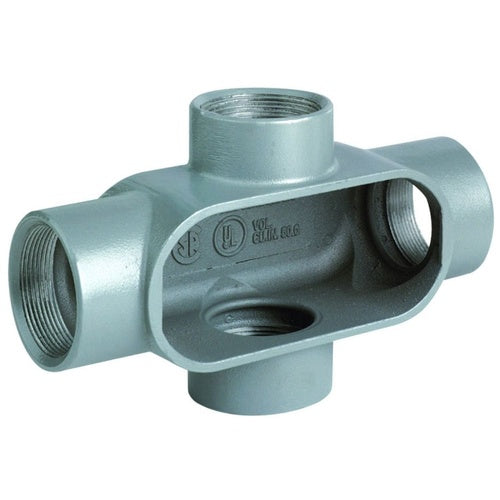

Killark X57SA 1-1/2" Hub Aluminum Conduit Body

Overview

Killark X57SA 1-1/2" Hub Aluminum Conduit Body

Product Specifications

• UPC: 78393608062
• Hub Size: 1-1/2 Inch
• Size: 8-7/16 Inch L x 2-9/16 Inch W x 4-7/8 Inch H
• Installation: Threaded (IMC/Rigid)
• Material: Electrostatically Applied Powder Coated Copper Free Aluminum
• Form Type: Form 7
• Approval: UL, CSA
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard Federal Specification W-C-586D/A-A 50563
• Catalog Number: X57SA
• Brand Name: DURALOY[R]
• Model: 7
• Access Opening: Side
• Configuration: X
• Cover Type: Stainless Steel
• Hub Location: Cross
• Number Of Hubs: 4
• Catalog Description: 1-1/2" X HUB, ALUMINUM DURALOY 7 CONDUIT BODY,
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Electrostatically Applied Powder Coated Copper Free Aluminum Material; 8-7/16 Inch L X 2-9/16 Inch W X 4-7/8 Inch H Size; Rigid Conduit/Imc Used on; 1-1/2 Inch Hub Size; Threaded (Imc/Rigid) Installation; X Configuration; 4 Hub(S); UL, CSA Approval; Stainless Steel Cover Type; Cross Hub Location; Form 7 Form Type; Side Access Opening; DURALOY[R]7 Brand; Applicable Standard Federal Specification W-C-586D/A-A 50563; 7 Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 783936080628
• SKU Name: klrk x57sa

Resources

• Manufacturer Spec Sheet
