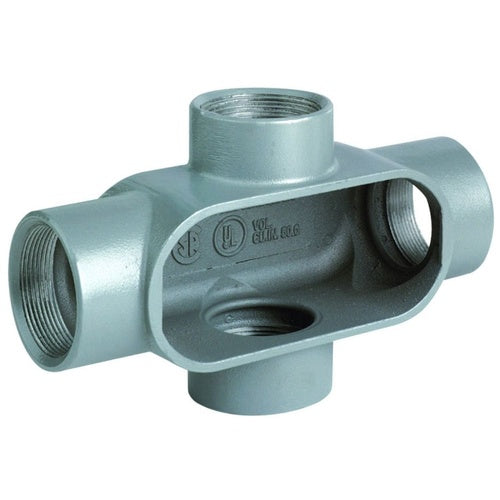

Killark X67 2" Hub X-Type Conduit Body

Product Specifications

• UPC: 78393601165
• Hub Size: 2 Inch
• Size: 9-7/16 Inch L x 3-1/8 Inch W x 5-7/16 Inch H
• Installation: Threaded (IMC/Rigid)
• Material: Electrostatically Applied Powder Coated Over Electro Zinc and Chromate Sealant Class 30 Gray Iron Alloy
• Form Type: Form 7
• Approval: UL, CSA
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard Federal Specification W-C-586D/A-A 50563
• Catalog Number: X67
• Brand Name: DURALOY[R]
• Model: 7
• Access Opening: Side
• Configuration: X
• Cover Type: Stainless Steel
• Hub Location: Cross
• Number Of Hubs: 4
• Catalog Description: 2" X HUB, IRON DURALOY 7 CONDUIT BODY,
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Electrostatically Applied Powder Coated Over Electro Zinc and Chromate Sealant Class 30 Gray Iron Alloy Material; 9-7/16 Inch L X 3-1/8 Inch W X 5-7/16 Inch H Size; Rigid Conduit/Imc Used on; 2 Inch Hub Size; Threaded (Imc/Rigid) Installation; X Configuration; 4 Hub(S); UL, CSA Approval; Stainless Steel Cover Type; Cross Hub Location; Form 7 Form Type; Side Access Opening; DURALOY[R]7 Brand; Applicable Standard Federal Specification W-C-586D/A-A 50563; 7 Model
• Manufacturer: KILLARK ELECTRIC MANUFACTURING CO.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 783936011653
• SKU Name: klrk x67
