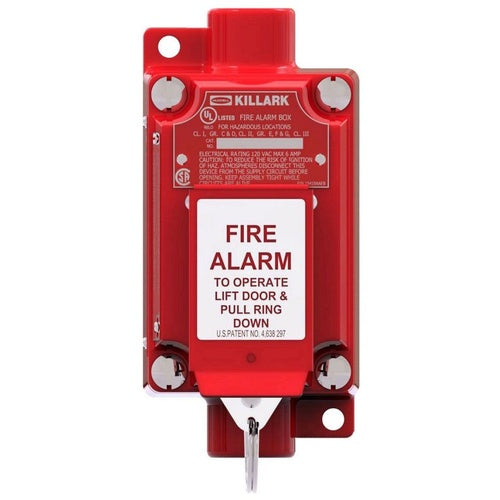

Killark XAL-458 2No&2Nc Fire Alarm Station

Overview

Killark XAL-458 2No&2Nc Fire Alarm Station

Product Specifications

• UPC: 78393688040
• Material: ALUMINUM ALLOY
• Finish: EPOXY
• Catalog Number: XAL-458
• Type: PULL RING
• Contact Voltage Rating: 600 V
• Contact Current Rating: 10 AMPERE
• Contact Configuration: 2NO 2NC
• Size: 3 INCH L X 6-3/8 INCH H X 5-9/16 INCH D
• Application: PETROLEUM REFINERY, CHEMICAL AND PETROCHEMICAL PLANT
• Approval: UL, CSA
• Catalog Description: XAL SERIES - ALUMINUM FEED-THRU FIRE ALARM STATION WITH PULL-RING ACTIVATION - HUB SIZE 3/4 INCH - 2NO/2NC CONTACT RATING
• Category: Fire & Alarm Pull Stations
• Full Technical Description: Pull Ring Type; 3 Inch L X 6-3/8 Inch H X 5-9/16 Inch D Size; 2NO 2NC Contact Configuration; UL, CSA Approval; Petroleum Refinery, Chemical and Petrochemical Plant Application; 10 Ampere Contact Current Rating; 600 V Contact Voltage Rating; Finish Epoxy; Material Aluminum Alloy
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Fire Alarm Station
• Unspsc: 39122216
• UPC 12 Digit: 783936880402
• SKU Name: klrk xal458

Resources

• Manufacturer Spec Sheet
