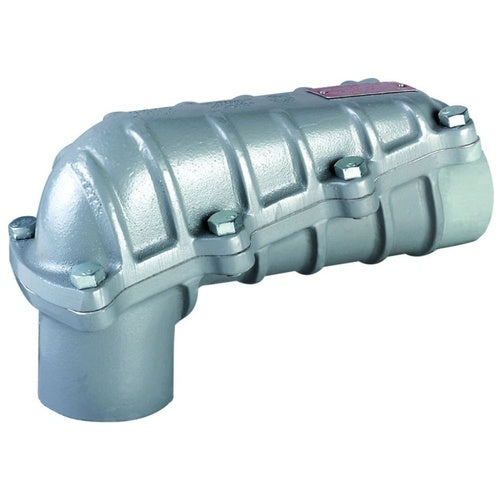

Killark XALB-5 1-1/2" Aluminum Explosion-Proof Conduit Body

Product Specifications

• UPC: 78393688002
• Capacity: 27 Cu Inch
• Enclosure: Class I Div 1 and 2 Group D, Class II Div 1 and 2 Group E F G, Class III
• Material: Copper Free Aluminum
• Finish: Electrostatically Applied Powder Coated
• Size: 7-3/4 Inch L x 3-15/16 Inch W x 4-1/16 Inch D
• Approval: UL, CSA
• Catalog Number: XALB-5
• Model: XALB
• Constructional Feature: Explosionproof
• Configuration: LB
• Hub Size: 1-1/2 Inch
• Number Of Hubs: 2
• Hub Location: 90 Deg
• Access Opening: Top
• Catalog Description: 1-1/2" XALB TYPE, ALUMINUM X SERIES CONDUIT BODY
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Copper Free Aluminum Material; 7-3/4 Inch L X 3-15/16 Inch W X 4-1/16 Inch D Size; Electrostatically Applied Powder Coated Finish; 1-1/2 Inch Hub Size; lb Configuration; 2 Hub(S); UL, CSA Approval; Class I Div 1 and 2 Group D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 27 Cu Inch Capacity; Explosionproof; 90 Deg Hub Location; Top Access Opening; XALB Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 783936880020
• SKU Name: klrk xalb5
