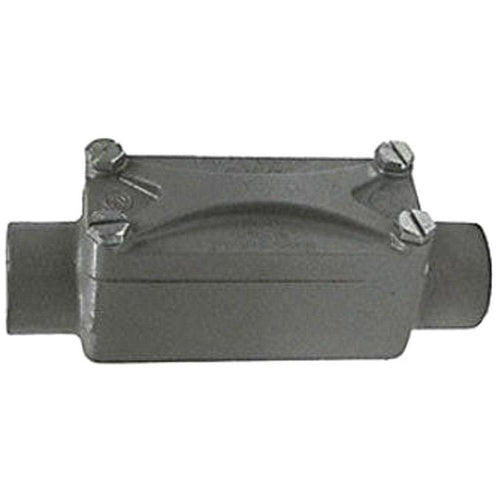

Killark XC-1 1/2" Aluminum Explosion-Proof Conduit Body

Overview

Killark XC-1 1/2" Aluminum Explosion-Proof Conduit Body

Product Specifications

• UPC: 78393689001
• Access Opening: Straight Side
• Capacity: 4.3 Cubic Inch
• Enclosure: Class II Div 1 and 2 Group E F G, Class III
• Material: Copper-Free Aluminum
• Finish: Electrostatic Powder Coated
• Size: 5-9/16 Inch Length x 1-17/32 Inch Width x 2-1/8 Inch Height
• Approval: UL, CSA
• Additional Information: Application Hazardous Location
• Catalog Number: XC-1
• Brand Name: Killark
• Model: X
• Constructional Feature: Integral Bushing
• Configuration: C
• Hub Size: 1/2 Inch
• Number Of Hubs: 2
• Hub Location: Straight
• Catalog Description: 1/2" C TYPE, ALUMINUM X SERIES CONDUIT BODY
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Copper-Free Aluminum Material; 5-9/16 Inch Length X 1-17/32 Inch Width X 2-1/8 Inch Height Size; Electrostatic Powder Coated Finish; 1/2 Inch Hub Size; C Configuration; 2 Hub(S); UL, CSA Approval; Class II Div 1 and 2 Group E F G, Class III Enclosure; 4.3 Cubic Inch Capacity; Integral Bushing; Straight Hub Location; Straight Side Access Opening; Application Hazardous Location; X Model
• Manufacturer: KILLARK ELECTRIC MANUFACTURING CO.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 783936890012
• SKU Name: klrk xc1

Resources

• Manufacturer Spec Sheet
• Technical Drawing
