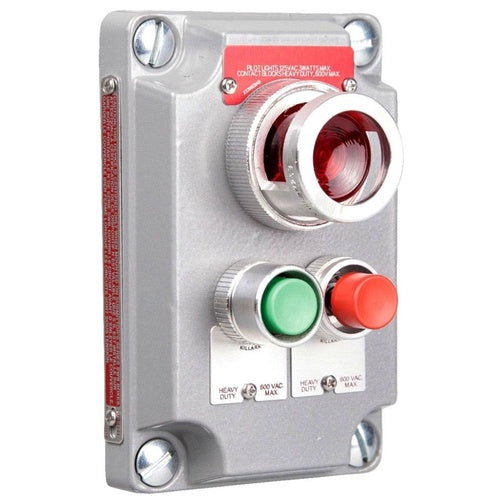

Killark XCS-0A15 Pushbutton Station

Overview

Killark XCS-0A15 Pushbutton Station

Product Specifications

• UPC: 78393689004
• Approval: UL, CSA
• Accessory Type: Covers
• Additional Information: Button Color Green, Red; Current Rating 10 Amp
• Catalog Number: XCS-0A15
• Brand Name: Killark
• Model: SEAL-X, FXCS
• Device Type: (2) Pushbutton, (1) Pilot Light
• Contact Configuration: 1NO-1NC
• Pilot Light Type: 120 Volt AC Red Candelabra Base
• Enclosure: Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group IIA IIB, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7C/7D/9E/9F/9G
• Used On: FXCS Series Pushbutton and Pilot Light Control Station
• Catalog Description: XCS SERIES- COVER WITH DEVICE - MOMENTARY CONTACT TWO MINI RED-GREEN PUSH BUTTONS AND RED PILOT LIGHT
• Category: Control Station Cover Assemblies
• Full Technical Description: Fxcs Series Pushbutton and Pilot Light Control Station Used on; 1NO-1NC Contact Configuration; UL, CSA Approval; Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group Iia Iib, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7C/7D/9E/9F/9G Enclosure; (2) Pushbutton, (1) Pilot Light Device Type; 120 Volt AC Red Candelabra Base Pilot Light Type; Button Color Green, Red; Current Rating 10 Amp; Accessory Type Covers; Seal-X, FXCS Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Combination Cover
• Unspsc: 39122216
• UPC 12 Digit: 783936890043
• SKU Name: klrk xcs0a15

Resources

• Manufacturer Spec Sheet
