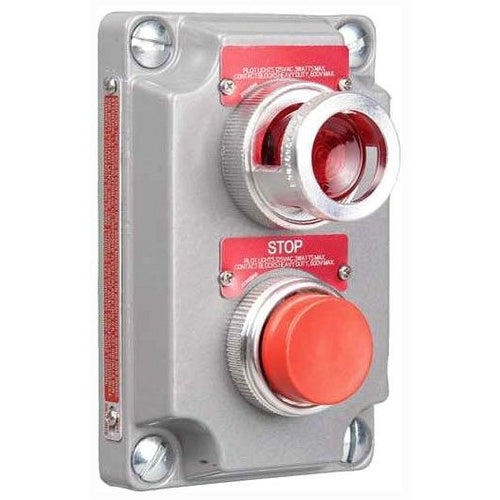

Killark XCS-0B13-C Pushbutton & Pilot Light Station Cover

Overview

Killark XCS-0B13-C Pushbutton & Pilot Light Station Cover

Product Specifications

• UPC: 78393689025
• Approval: UL, CSA
• Additional Information: Button Color Red; Current Rating 10 Ampere
• Catalog Number: XCS-0B13-C
• Model: XCS
• Device Type: (1) Pushbutton, (1) Pilot Light
• Contact Configuration: 1NO
• Pilot Light Type: 120 VAC 6 W Red Candelabra Base
• Material: Cast Copper Free Aluminum Alloy
• Enclosure: Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group IIA IIB, Class II Div 1 and 2 Group E F G, Class III, NEMA 7C/7D/9E/9F/9G
• Used On: XCS Series Pushbutton and Pilot Light Control Station
• Catalog Description: XCS SERIES - ALUMINUM MOMENTARY CONTACT PUSH BUTTON AND 120V PILOT LIGHT COVER WITH DEVICE - RED BUTTON WITH "STOP" NAMEPLATE - RED LENS WITH NAMEPLATE TO BE SPECIFIED - 1NC CONTACT RATING
• Category: Control Station Cover Assemblies
• Full Technical Description: Cast Copper Free Aluminum Alloy Material; Xcs Series Pushbutton and Pilot Light Control Station Used on; 1NO Contact Configuration; UL, CSA Approval; Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group Iia Iib, Class II Div 1 and 2 Group E F G, Class III, NEMA 7C/7D/9E/9F/9G Enclosure; (1) Pushbutton, (1) Pilot Light Device Type; 120 VAC 6 W Red Candelabra Base Pilot Light Type; Button Color Red; Current Rating 10 Ampere; XCS Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Combination Cover
• Unspsc: 39122216
• UPC 12 Digit: 783936890258
• SKU Name: klrk xcs0b13c

Resources

• Manufacturer Spec Sheet
