Overview

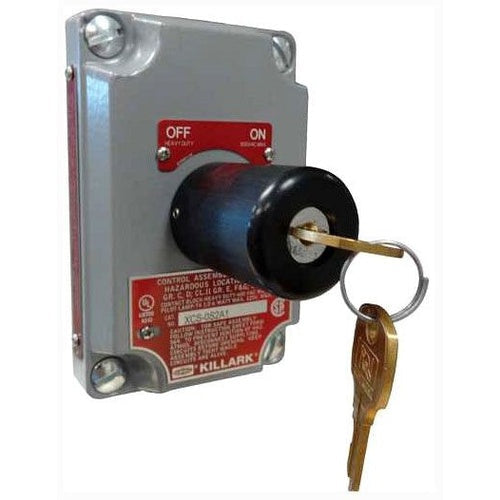

Killark XCS-0K2A1 Selector Switch

Product Specifications

• UPC: 78393689043
• Enclosure: Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group IIA IIB, Class II Div 1 and 2 Group E F G, Class III, NEMA 7C/7D/9E/9F/9G
• Used On: XCS Series Factory Sealed Selector Switch
• Approval: UL, CSA
• Additional Information: Hub Size 1/2 Inch, 3/4 Inch; Voltage Rating 600 VAC; Application Hazardous Location, Petroleum Refineries, Chemical and Petrochemical Plant, Remote Control of Motor
• Catalog Number: XCS-0K2A1
• Model: XCS
• Operation Type: Maintained
• Contact Configuration: 1NO-1NC
• Number Of Selector Switches: 1
• Number Of Positions: 2
• Operator Type: Key
• Material: Cast Copper Free Aluminum Alloy
• Catalog Description: XCS SERIES - ALUMINUM MAINTAINED CONTACT 2-POSITION KEYED SELECTOR SWITCH COVER WITH DEVICE - KEYED DIFFERENT WITH KEY REMOVAL IN BOTH POSITIONS- "OFF - ON" NAMEPLATE - 1NO/1NC CONTACT RATING
• Category: Control Station Cover Assemblies
• Full Technical Description: Cast Copper Free Aluminum Alloy Material; Xcs Series Factory Sealed Selector Switch Used on; 1NO-1NC Contact Configuration; Maintained Operation Type; UL, CSA Approval; Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group Iia Iib, Class II Div 1 and 2 Group E F G, Class III, NEMA 7C/7D/9E/9F/9G Enclosure; Key Operator Type; 2 Position(S); 1 Selector Switch(S); Hub Size 1/2 Inch, 3/4 Inch; Voltage Rating 600 VAC; Application Hazardous Location, Petroleum Refineries, Chemical and Petrochemical Plant, Remote Control of Motor; XCS Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Selector Switch Cover
• Unspsc: 39122216
• UPC 12 Digit: 783936890432
• SKU Name: klrk xcs0k2a1

Resources

• Manufacturer Spec Sheet
