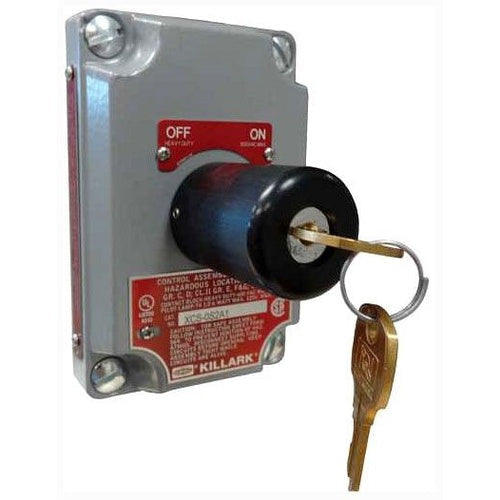

Killark XCS-0K2A5 2-Position Selector Switch Sta Cover

Product Specifications

• UPC: 78393689045
• Material: CAST COPPER FREE ALUMINUM ALLOY
• Enclosure: CLASS I DIV 1 AND 2 GROUP C D, CLASS I ZONE 1 AND 2 GROUP IIA IIB, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 7C/7D/9E/9F/9G
• Used On: XCS SERIES FACTORY SEALED SELECTOR SWITCH
• Approval: UL, CSA
• Additional Information: HUB SIZE 3/4 INCH
• Catalog Number: XCS-0K2A5
• Brand Name: KILLARK[R]
• Model: XCS
• Operation Type: MAINTAINED
• Contact Configuration: 2NO-2NC
• Number Of Selector Switches: 1
• Number Of Positions: 2
• Operator Type: FRONT OPERATED KEY
• Catalog Description: XCS SERIES - ALUMINUM MAINTAINED CONTACT 2-POSITION KEYED SELECTOR SWITCH COVER WITH DEVICE - KEYED DIFFERENT WITH KEY REMOVAL IN BOTH POSITIONS- "OFF - ON" NAMEPLATE - 2NO/2NC CONTACT RATING
• Category: Control Station Cover Assemblies
• Full Technical Description: Cast Copper Free Aluminum Alloy Material; Xcs Series Factory Sealed Selector Switch Used on; 2NO-2NC Contact Configuration; Maintained Operation Type; UL, CSA Approval; Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group Iia Iib, Class II Div 1 and 2 Group E F G, Class III, NEMA 7C/7D/9E/9F/9G Enclosure; Front Operated Key Operator Type; 2 Position(S); 1 Selector Switch(S); KILLARK[R] Brand; Hub Size 3/4 Inch; XCS Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Selector Switch Cover
• Unspsc: 39122216
• UPC 12 Digit: 783936890456
• SKU Name: klrk xcs0k2a5

Resources

• Manufacturer Spec Sheet
