Overview

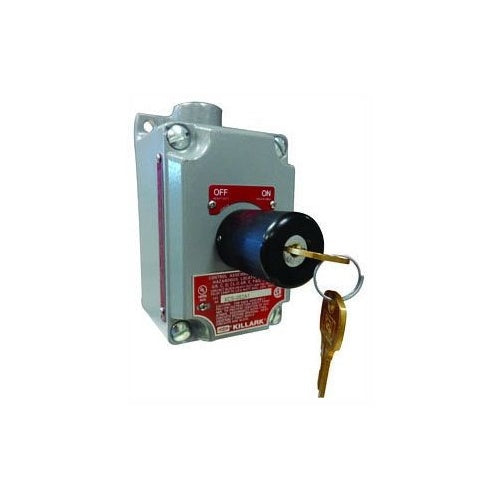

Killark XCS-5K2A1 CLI Xcs-0K2A1 Cover W/3/4" Feed-Thru

Product Specifications

• UPC: 78393689200
• Number Of Positions: 2
• Operator Type: Key
• Hub Size: 3/4 Inch
• Enclosure Material: Cast Copper Free Aluminum Alloy
• Enclosure: Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group IIA IIB, Class II Div 1 and 2 Group E F G, Class III, NEMA 7C/7D/9E/9F/9G
• Approval: UL, CSA
• Catalog Number: XCS-5K2A1
• Model: XCS
• Type: Feed Through
• Constructional Feature: Dust Ignitionproof
• Voltage Rating: 600 VAC
• Current Rating: 10 Ampere at 600 VAC, 2.5 Ampere at 250 VDC
• Operation Type: Maintained
• Contact Configuration: 1NO-1NC
• Catalog Description: XCS SERIES - ALUMINUM FEED-THRU MAINTAINTED CONTACT 2-POSITION KEYED SELECTOR SWITCH - 1NO/1NC CONTACT RATING - HUB SIZE 3/4 INCH
• Category: Control Station Cover Assemblies
• Full Technical Description: Feed Through Type; 1NO-1NC Contact Configuration; 3/4 Inch Hub Size; Maintained Operation Type; Cast Copper Free Aluminum Alloy Enclosure Material; UL, CSA Approval; 600 VAC Voltage Rating; Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group Iia Iib, Class II Div 1 and 2 Group E F G, Class III, NEMA 7C/7D/9E/9F/9G Enclosure; 10 Ampere at 600 VAC, 2.5 Ampere at 250 VDC Current Rating; Dust Ignitionproof; Key Operator Type; 2 Position(S); XCS Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Selector Switch Control Station
• Unspsc: 39122216
• UPC 12 Digit: 783936892009
• SKU Name: klrk xcs5k2a1

Resources

• Manufacturer Spec Sheet
