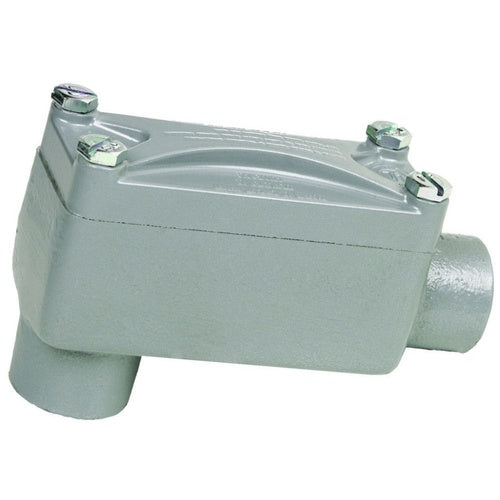

Killark XLB-3 1" LB Type Aluminum Hazardous Location Fitting

Overview

Killark XLB-3 1" LB Type Aluminum Hazardous Location Fitting

Product Specifications

• UPC: 78393691003
• Capacity: 11.5 Cubic Inch
• Enclosure: Class I Division 1 and 2 Group C D, Class II Division 1 and 2 Group E F G, Class III Division 1 and 2
• Material: Copper-Free Aluminum
• Finish: Electrostatically Applied Powder Epoxy Painted
• Size: 5-17/32 Inch Length x 2-3/8 Inch Width x 3-5/8 Inch Height
• Approval: UL, CSA
• Catalog Number: XLB-3
• Model: XLB
• Constructional Feature: Explosionproof
• Configuration: LB
• Hub Size: 1 Inch
• Number Of Hubs: 2
• Hub Location: 90 Degree
• Access Opening: Side
• Catalog Description: 1" LB TYPE, ALUMINUM X SERIES CONDUIT BODY
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Copper-Free Aluminum Material; 5-17/32 Inch Length X 2-3/8 Inch Width X 3-5/8 Inch Height Size; Electrostatically Applied Powder Epoxy Painted Finish; 1 Inch Hub Size; lb Configuration; 2 Hub(S); UL, CSA Approval; Class I Division 1 and 2 Group C D, Class II Division 1 and 2 Group E F G, Class III Division 1 and 2 Enclosure; 11.5 Cubic Inch Capacity; Explosionproof; 90 Degree Hub Location; Side Access Opening; XLB Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 783936910031
• SKU Name: klrk xlb3
