Overview

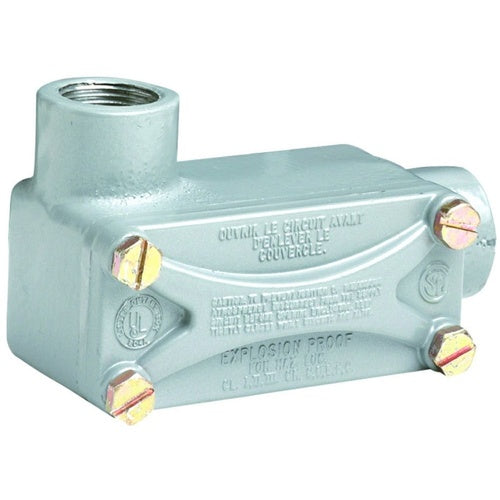

Killark XLL-1 1/2" LL Type Aluminum Hazardous Location Fitting

Product Specifications

• UPC: 78393691004
• Capacity: 4.3 Cu Inch
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III
• Material: Copper Free Aluminum
• Finish: Electrostatically Applied Powder Coated
• Size: 4-5/8 Inch L x 2-7/16 Inch W x 2-1/8 Inch H
• Approval: UL, CSA
• Catalog Number: XLL-1
• Model: XLL
• Constructional Feature: Explosionproof
• Configuration: LL
• Hub Size: 1/2 Inch
• Number Of Hubs: 2
• Hub Location: 90 Deg
• Access Opening: Side
• Catalog Description: 1/2" LL TYPE, ALUMINUM X SERIES CONDUIT BODY
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Copper Free Aluminum Material; 4-5/8 Inch L X 2-7/16 Inch W X 2-1/8 Inch H Size; Electrostatically Applied Powder Coated Finish; 1/2 Inch Hub Size; LL Configuration; 2 Hub(S); UL, CSA Approval; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 4.3 Cu Inch Capacity; Explosionproof; 90 Deg Hub Location; Side Access Opening; XLL Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 783936910048
• SKU Name: klrk xll1

Resources

• Manufacturer Spec Sheet
• Technical Drawing
