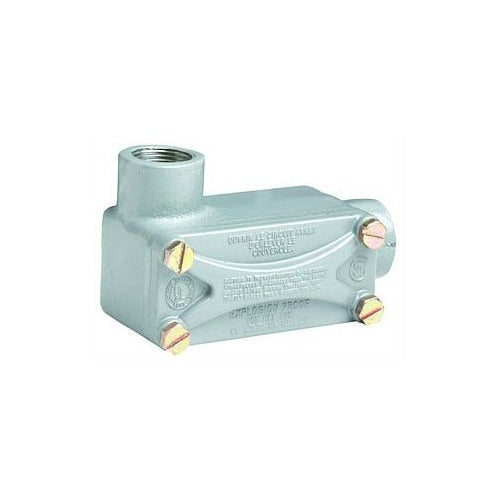

Killark XLL-3 1" LL-Type Conduit Body Threaded

Overview

Killark XLL-3 1" LL-Type Conduit Body Threaded

Product Specifications

• UPC: 78393691006
• Capacity: 11.5 Cu Inch
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III
• Material: Copper Free Aluminum
• Finish: Electrostatically Applied Powder Coated
• Size: 5-9/16 Inch L x 3-1/2 Inch W x 2-1/2 Inch H
• Approval: UL, CSA
• Catalog Number: XLL-3
• Model: XLL
• Constructional Feature: Explosionproof
• Configuration: LL
• Hub Size: 1 Inch
• Number Of Hubs: 2
• Hub Location: 90 Deg
• Access Opening: Side
• Catalog Description: 1" LL TYPE, ALUMINUM X SERIES CONDUIT BODY
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Copper Free Aluminum Material; 5-9/16 Inch L X 3-1/2 Inch W X 2-1/2 Inch H Size; Electrostatically Applied Powder Coated Finish; 1 Inch Hub Size; LL Configuration; 2 Hub(S); UL, CSA Approval; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 11.5 Cu Inch Capacity; Explosionproof; 90 Deg Hub Location; Side Access Opening; XLL Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 783936910062
• SKU Name: klrk xll3

Resources

• Manufacturer Spec Sheet
• Technical Drawing
