Overview

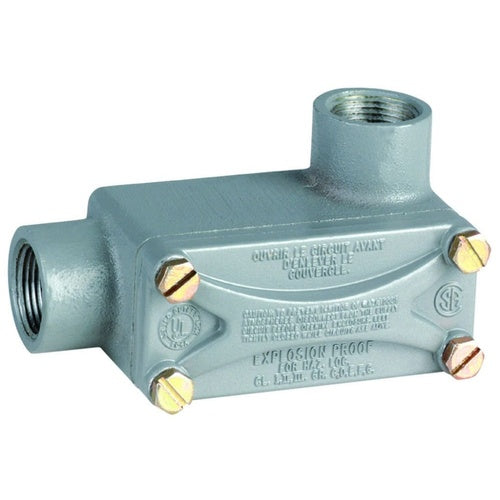

Killark XLR-2 3/4" LR-Type Aluminum Hazardous Location Fitting

Product Specifications

• UPC: 78393691008
• Capacity: 6.5 Cu Inch
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III
• Material: Copper Free Aluminum
• Finish: Electrostatically Applied Powder Coated
• Size: 4-29/32 Inch L x 2-5/8 Inch W x 2-1/4 Inch H
• Approval: UL, CSA
• Catalog Number: XLR-2
• Model: XLR
• Constructional Feature: Explosionproof
• Configuration: LR
• Hub Size: 3/4 Inch
• Number Of Hubs: 2
• Hub Location: 90 Deg
• Access Opening: Side
• Catalog Description: 3/4" LR TYPE, ALUMINUM X SERIES CONDUIT BODY
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Copper Free Aluminum Material; 4-29/32 Inch L X 2-5/8 Inch W X 2-1/4 Inch H Size; Electrostatically Applied Powder Coated Finish; 3/4 Inch Hub Size; LR Configuration; 2 Hub(S); UL, CSA Approval; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 6.5 Cu Inch Capacity; Explosionproof; 90 Deg Hub Location; Side Access Opening; XLR Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 783936910086
• SKU Name: klrk xlr2

Resources

• Manufacturer Spec Sheet
• Technical Drawing
