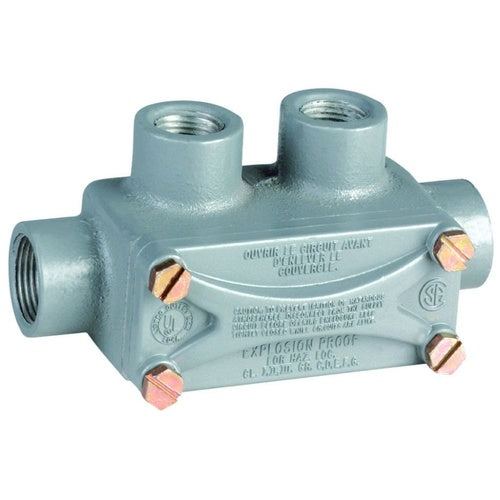

Killark XLRT-21 3/4" End 1/2" Side Lrt Hazardous Location

Overview

Killark XLRT-21 3/4" End 1/2" Side Lrt Hazardous Location

Product Specifications

• UPC: 78393691200
• Capacity: 7 Cu Inch
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III
• Material: Copper Free Aluminum
• Finish: Electrostatically Applied Powder Coated
• Size: 5-3/4 Inch L x 2-21/32 Inch W x 2-1/2 Inch H
• Approval: UL, CSA
• Catalog Number: XLRT-21
• Model: XLRT
• Constructional Feature: Explosionproof
• Configuration: XLRT
• Hub Size: (2) 1/2 Inch (Side), (2) 3/4 Inch (End)
• Number Of Hubs: 4
• Hub Location: Tee
• Access Opening: Side
• Catalog Description: 3/4" ENDS 1/2" SIDES LRT TYPE, ALUMINUM X SERIES CONDUIT BODY
• Category: Rigid Conduit Fittings - Aluminum
• Full Technical Description: Copper Free Aluminum Material; 5-3/4 Inch L X 2-21/32 Inch W X 2-1/2 Inch H Size; Electrostatically Applied Powder Coated Finish; (2) 1/2 Inch (Side), (2) 3/4 Inch (End) Hub Size; Xlrt Configuration; 4 Hub(S); UL, CSA Approval; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 7 Cu Inch Capacity; Explosionproof; Tee Hub Location; Side Access Opening; XLRT Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 783936912004
• SKU Name: klrk xlrt21
