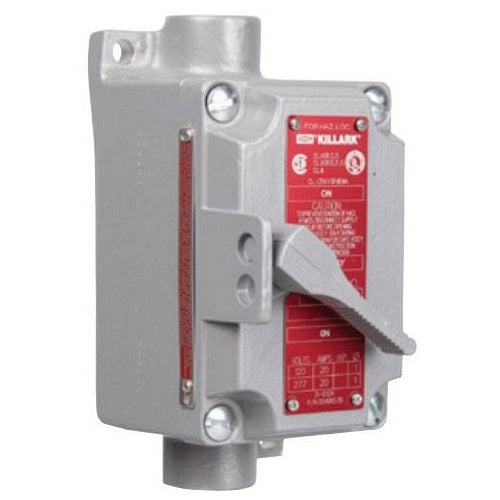

Killark XS-23C 3Way Explosion-Proof Switch

Overview

Killark XS-23C 3Way Explosion-Proof Switch

Product Specifications

• UPC: 78393693028
• Enclosure Material: Cast Copper Free Aluminum Alloy
• Enclosure: Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group IIA IIB, Class II Div 1 and 2 Group E F G, Class III, NEMA 7C/7D/9E/9F/9G
• Approval: UL, CSA, FM
• Catalog Number: XS-23C
• Model: XS
• Type: Dead End
• Voltage Rating: 120/277 VAC
• Current Rating: 20 Ampere
• Contact Configuration: 3-Way, SPDT
• Operator Type: Front Operated Lever
• Hub Size: 3/4 Inch
• Catalog Description: XS SERIES - ALUMINUM DEAD-END 3-WAY/SPDT (NO CENTER OFF) TUMBLER SWITCH UNIT - HUB SIZE 3/4 INCH - 20A
• Category: Level Switches & Accessories
• Full Technical Description: Dead End Type; 3-Way, SPDT Contact Configuration; 3/4 Inch Hub Size; Cast Copper Free Aluminum Alloy Enclosure Material; UL, CSA, FM Approval; 120/277 VAC Voltage Rating; Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group Iia Iib, Class II Div 1 and 2 Group E F G, Class III, NEMA 7C/7D/9E/9F/9G Enclosure; 20 Ampere Current Rating; Front Operated Lever Operator Type; XS Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Tumbler/Snap Switch Control Station
• Unspsc: 39122211
• UPC 12 Digit: 783936930282
• SKU Name: klrk xs23c

Resources

• Manufacturer Spec Sheet
