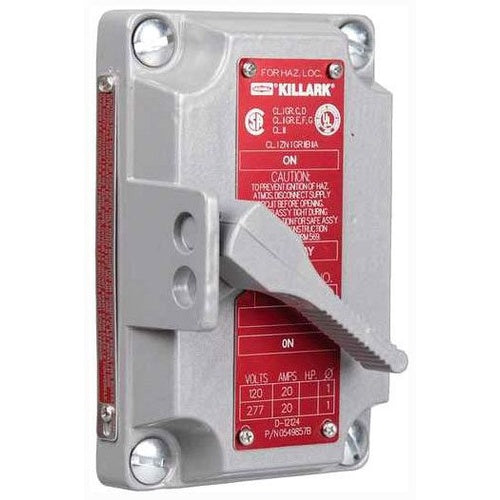

Killark XS-5C Tumbler Switch Cover

Overview

Killark XS-5C Tumbler Switch Cover

Product Specifications

• UPC: 78393692522
• Catalog Number: XS-5C
• Model: XS
• Type: Cover Assembly
• Used On: XS Series Tumbler Switch Control Station
• Additional Information: Approval UL, CSA, FM; Voltage Rating 120/240 VAC; Current Rating 20 Ampere; Hub Size 1/2 Inch, 3/4 Inch; Switch Style SPDT; Operator Type Front Operated Lever; Enclosure Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group IIA IIB, Class II Div 1 and
• Catalog Description: XS SERIES - ALUMINUM SPDT (CENTER OFF) TUMBLER SWITCH COVER WITH DEVICE- 20A
• Category: Selector Switch Components
• Full Technical Description: Cover Assembly Type; XS Series Tumbler Switch Control Station Used on; Approval UL, CSA, FM; Voltage Rating 120/240 VAC; Current Rating 20 Ampere; Hub Size 1/2 Inch, 3/4 Inch; Switch Style SPDT; Operator Type Front Operated Lever; Enclosure Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group Iia Iib, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7C/7D/9E/9F/9G; XS Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Assembled Control Station Accessories
• Unspsc: 39122211
• UPC 12 Digit: 783936925226
• SKU Name: klrk xs5c

Resources

• Manufacturer Spec Sheet
