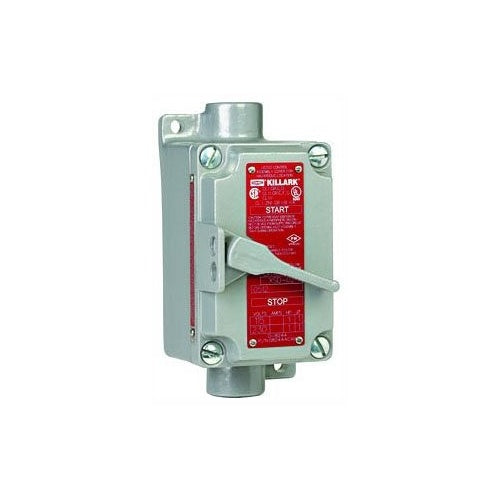

Killark XSD-51 1P Manual Motor Starter

Overview

Killark XSD-51 1P Manual Motor Starter

Product Specifications

• UPC: 78393693217
• Additional Information: Approval UL, CSA; Hub Size 3/4 Inch; Hub Style Feed Thru; Number of Gangs 1
• Catalog Number: XSD-51
• Model: XSD
• Type: Motor Protector
• 1 Phase Hp/Volts: 1 HP at 115 to 230 VAC
• Poles: 1
• Enclosure Type: NEMA 7C/7D/9E/9F/9G
• Operator: Shaft
• Construction Standard: NEMA
• Catalog Description: XSD/XSX/FXSD/FXSX SERIES - XSD SINGLE GANG ALUMINUM MANUAL MOTOR STARTING SWITCH - 1 POLE SINGLE PHASE - FEED-THRU - HUB SIZE 3/4 IN
• Category: Manual Motor Switches & Accessories
• Full Technical Description: Motor Protector Type; NEMA 7C/7D/9E/9F/9G Enclosure Type; NEMA Construction Standard; 1 Poles; 1 HP at 115 to 230 VAC 1 Phase Hp/Volts; Shaft Operator; Approval UL, CSA; Hub Size 3/4 Inch; Hub Style Feed Thru; Number of Gangs 1; XSD Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Manual Starter
• Unspsc: 39121521
• UPC 12 Digit: 783936932170
• SKU Name: klrk xsd51

Resources

• Manufacturer Spec Sheet
