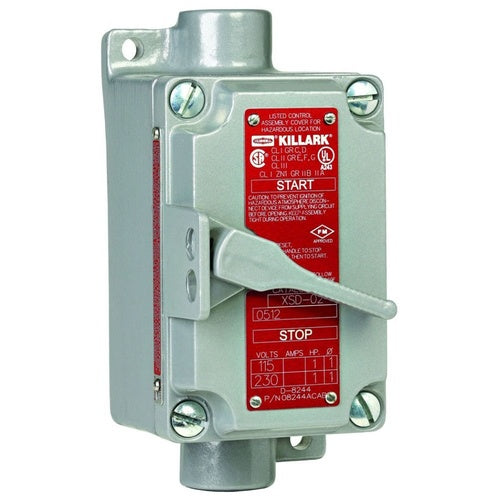

Killark XSX-23 3P 3Ph Manual Motor Starter Switch

Overview

Killark XSX-23 3P 3Ph Manual Motor Starter Switch

Product Specifications

• UPC: 78393693345
• Construction Standard: NEMA
• Additional Information: Approval UL, CSA; Hub Size 3/4 Inch; Hub Style Dead End; Number of Gangs 1
• Catalog Number: XSX-23
• Model: XSX
• Type: Motor Protector
• 3 Phase Hp/Volts: 2 HP at 115 VAC, 7-1/2 HP at 200 to 230 VAC, 10 HP at 460 to 575 VAC
• Current Rating: 30 Ampere at 250 V, 20 Ampere at 600 V
• Poles: 3
• Enclosure Type: NEMA 7C/7D/9E/9F/9G
• Operator: Shaft
• Catalog Description: XSX SERIES - ALUMINUM DEAD-END SINGLE GANG 3-POLE, 3-PHASE MANUAL MOTOR STARTING SWITCH UNIT - WITHOUT OVERLOAD PROTECTION - HUB SIZE 3/4 INCH
• Category: Manual Motor Switches & Accessories
• Full Technical Description: Motor Protector Type; 30 Ampere at 250 V, 20 Ampere at 600 V Current Rating; NEMA 7C/7D/9E/9F/9G Enclosure Type; NEMA Construction Standard; 3 Poles; 2 HP at 115 VAC, 7-1/2 HP at 200 to 230 VAC, 10 HP at 460 to 575 VAC 3 Phase Hp/Volts; Shaft Operator; Approval UL, CSA; Hub Size 3/4 Inch; Hub Style Dead End; Number of Gangs 1; XSX Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Manual Starter
• Unspsc: 39121521
• UPC 12 Digit: 783936933450
• SKU Name: klrk xsx23

Resources

• Manufacturer Spec Sheet
