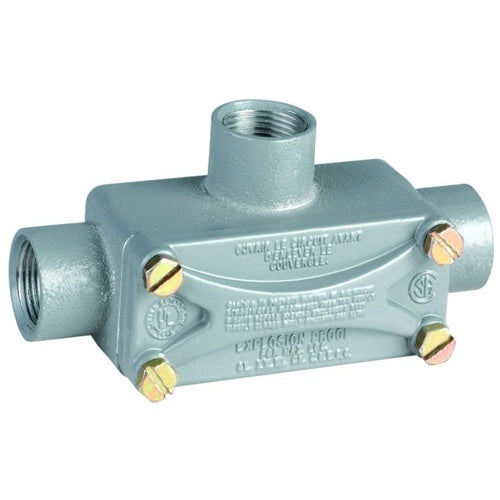

Killark XT-1 1/2" Aluminum Explosion-Proof Conduit Body

Overview

Killark XT-1 1/2" Aluminum Explosion-Proof Conduit Body

Product Specifications

• UPC: 78393695001
• Capacity: 4.3 Cu Inch
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III
• Material: Copper Free Aluminum
• Finish: Electrostatically Applied Powder Coated
• Size: 5-9/16 Inch L x 2-7/16 Inch W x 2-1/8 Inch H
• Approval: UL, CSA
• Catalog Number: XT-1
• Model: XT
• Constructional Feature: Explosionproof
• Configuration: T
• Hub Size: 1/2 Inch
• Number Of Hubs: 3
• Hub Location: Tee
• Access Opening: Side
• Catalog Description: 1/2" T TYPE, ALUMINUM X SERIES CONDUIT BODY
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Copper Free Aluminum Material; 5-9/16 Inch L X 2-7/16 Inch W X 2-1/8 Inch H Size; Electrostatically Applied Powder Coated Finish; 1/2 Inch Hub Size; T Configuration; 3 Hub(S); UL, CSA Approval; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 4.3 Cu Inch Capacity; Explosionproof; Tee Hub Location; Side Access Opening; XT Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 783936950013
• SKU Name: klrk xt1

Resources

• Manufacturer Spec Sheet
• Technical Drawing
