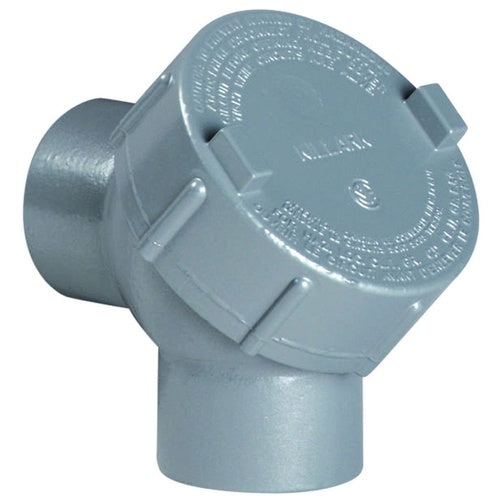

Killark Y-3 1" Explosion-Proof 90D CAppletoned Elbow

Overview

Killark Y-3 1" Explosion-Proof 90D Capped Elbow

Product Specifications

• UPC: 78393697003
• Approval: UL, CSA, FM
• Additional Information: Constructional Feature Explosionproof; Enclosure Type Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III; Used On IMC/Rigid Conduit; Applicable Standard ATEX, IECEx
• Catalog Number: Y-3
• Model: Y
• Type: Capped, Pulling
• Trade Size: 1 Inch
• Bend Angle: 90 Degree
• Connection Type: Female
• Material: Copper-Free Aluminum
• Finish: Gray Powder Coated
• Catalog Description: 90 1", CAPPED ELBOW
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Capped, Pulling Type; Copper-Free Aluminum Material; Gray Powder Coated Finish; Female Connection Type; UL, CSA, FM Approval; 1 Inch Trade Size; 90 Degree Bend Angle; Constructional Feature Explosionproof; Enclosure Type Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III; Used on Imc/Rigid Conduit; Applicable Standard ATEX, Iecex; Y Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Conduit Elbow
• Unspsc: 39121331
• UPC 12 Digit: 783936970035
• SKU Name: klrk y3

Resources

• Manufacturer Spec Sheet
• Technical Drawing
