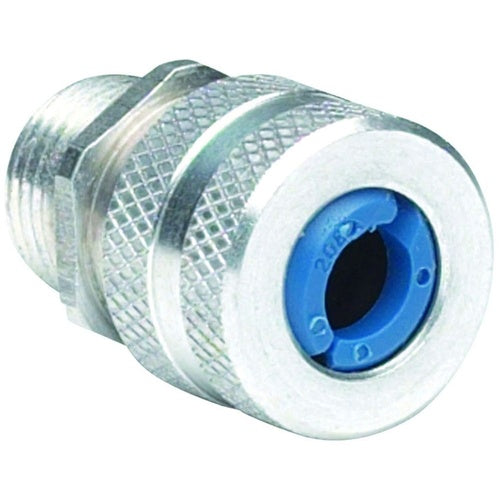

Killark ZS513 1-1/2" 1.00-1.25 Cord Connector

Overview

Killark ZS513 1-1/2" 1.00-1.25 Cord Connector

Product Specifications

• UPC: 78393697376
• Application: Hazardous Location
• Catalog Number: ZS513
• Model: Z
• Type: Straight
• Thread Size: 1-1/2 Inch NPT
• Material: Natural Copper Free Aluminum Body, Neoprene Grommet, Nylon Retention Ring
• Cord Size: 1 to 1.125 Inch
• Size: 2.31 Inch Dia x 2.45 Inch L
• Approval: UL, CSA
• Catalog Description: 1-1/2" ALUMINUM CORD CONNECTOR, CORD RANGE 1.00-.1.125,
• Category: Cable & Cord Grips
• Full Technical Description: Straight Type; Natural Copper Free Aluminum Body, Neoprene Grommet, Nylon Retention Ring Material; 2.31 Inch Dia X 2.45 Inch L Size; UL, CSA Approval; Hazardous Location Application; 1-1/2 Inch NPT Thread Size; 1 to 1.125 Inch Cord Size; Z Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 783936973760
• SKU Name: klrk zs513

Resources

• Manufacturer Spec Sheet
