Overview

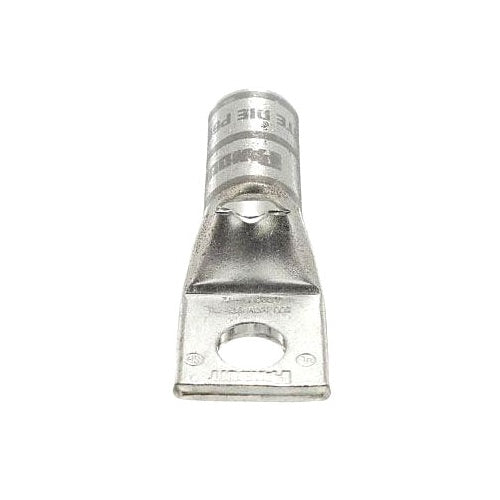

Panduit LCA300-12-X Copper Lug 300Kcmil 1/2 Stud Pkg 10

Product Specifications

• UPC: 07498390050
• Pad Size: 1.19 Inch W x 0.16 Inch Thk
• Number Of Pad Holes: 1
• Stud Size: 1/2 Inch
• Color: White
• Die Index: P66, 17 (Burndy), 66 (T and B)
• Material: Electro Tin Plated Copper
• Overall Length: 3.05 Inch
• Approval: UL 486A/486B, CSA C22.2
• Additional Information: Includes Inspection Window; Temperature Rating 90 Deg C; ROHS Compliant
• Catalog Number: LCA300-12-X
• Brand Name: Pan-Lug[TM]
• Model: LCA
• Voltage Rating: 35 KV
• Conductor Material: Copper
• Conductor Size: 300 KCMIL
• Barrel Type: Standard with Window, Straight
• Barrel Length: 1.44 Inch
• Catalog Description: ONE-HOLE, STANDARD BARREL WITH WINDOW LUG, 300 KCMIL CABLE, 1/2 STUD HOLE.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; White Color; 3.05 Inch Overall Length; 1.44 Inch Barrel Length; Copper Conductor Material; UL 486A/486B, CSA C22.2 Approval; 35 kV Voltage Rating; 300 kcmil Conductor Size; 1/2 Inch Stud Size; P66, 17 (Burndy), 66 (T and B) Die Index; 1.19 Inch W X 0.16 Inch Thk Pad Size; 1 Pad Hole(S); Standard With Window, Straight Barrel Type; Pan-LUG[TM] Brand; Includes Inspection Window; Temperature Rating 90 Deg C; RoHS Compliant; LCA Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 074983900503
• SKU Name: lca30012x panduit
