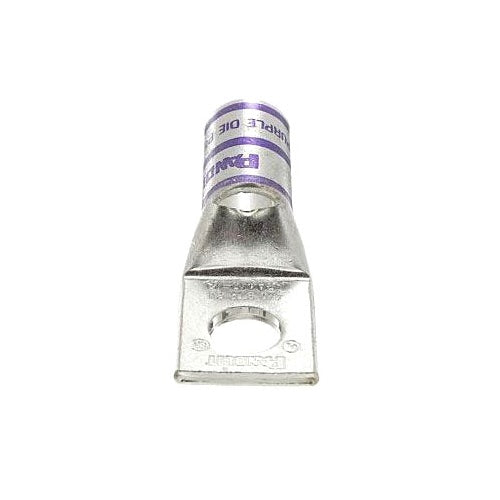

Panduit LCA4/0-12-X Copper Lug 4/0Awg .5" Stud Wdw Pk10

Product Specifications

• UPC: 07498390041
• Pad Size: 1.06 Inch Width x 0.14 Inch Thickness
• Number Of Pad Holes: 1
• Stud Size: 1/2 Inch
• Color: Purple
• Die Index: P54, 15 (Burndy), 54 (T and B)
• Material: Tin Plated Copper
• Overall Length: 2.68 Inch
• Approval: UL 486A/B, CSA C22.2
• Additional Information: RoHS Compliant; Wire Strip Length 1-1/4 Inch; Includes Inspection Window; Temperature Rating 90 Deg C
• Catalog Number: LCA4/0-12-X
• Brand Name: Panduit
• Model: LCA
• Voltage Rating: 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 4/0 AWG
• Barrel Type: Standard, Straight
• Barrel Length: 1.19 Inch
• Catalog Description: THE LCA4/0-12-X TIN-PLATED COPPER COMPRESSION LUG, ONE-HOLE, STANDARD BARREL, HAS COLOR-CODED BARRELS MARKED WITH PANDUIT AND SPECIFIED COMPETITOR DIE INDEX NUMBERS FOR PROPER CRIMP DIE SELECTION. AN INSPECTION WINDOW AIDS TO VISUALLY ASSURE FULL CONDUCTOR INSERTION, AND THE TIN-PLATE MATERIAL HELPS TO INHIBIT CORROSION. UL LISTED AND CSA CERTIFIED TO 35 KV AND TEMPERATURE RATED TO 90C
• Category: Large Terminals & Connectors
• Full Technical Description: Tin Plated Copper Material; Purple Color; 2.68 Inch Overall Length; 1.19 Inch Barrel Length; Copper Conductor Material; UL 486A/B, CSA C22.2 Approval; 35 Kilovolt Voltage Rating; 4/0 AWG Conductor Size; 1/2 Inch Stud Size; P54, 15 (Burndy), 54 (T and B) Die Index; 1.06 Inch Width X 0.14 Inch Thickness Pad Size; 1 Pad Hole(S); Standard, Straight Barrel Type; Pan-LUG[TM] Brand; RoHS Compliant; Wire Strip Length 1-1/4 Inch; Includes Inspection Window; Temperature Rating 90 Deg C; LCA Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 074983900411
• SKU Name: lca4/012x panduit
