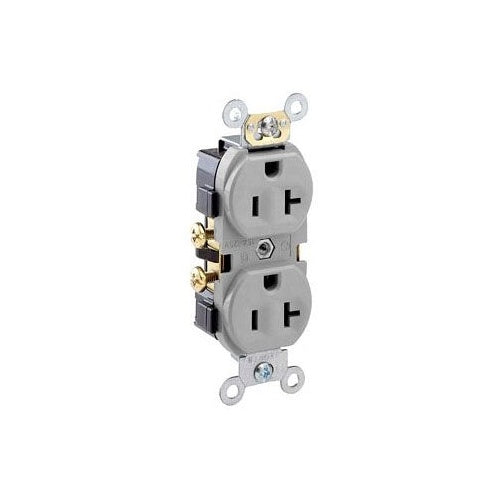

Leviton CR20-GY Gray Duplex Receptacle Nema5-20R

Product Specifications

• UPC: 07847781544
• Number Of Wires: 3
• Ground Type: Self-Grounding
• Material: Thermoplastic (Body/Face)
• Color: Gray
• Wiring: Side
• Grade: Commercial, Specification
• Approval: UL 498, CSA C22.2, NOM
• Additional Information: Applicable Standard ANSI C73, NEMA WD-6; Power Rating 1 HP; Material Brass (Contact), Zinc Plated Steel (Strap); Temperature Rating -40 to 60 Deg C
• Catalog Number: CR20-GY
• Model: Series CR20
• Type: Duplex, Narrow
• Constructional Feature: Impact Resistant
• Configuration: 5-20R
• Voltage Rating: 125 V
• Current Rating: 20 Ampere
• Number Of Poles: 2
• Catalog Description: 20 AMP, 125 VOLT, NEMA 5-20R, 2P, 3W, NARROW BODY DUPLEX RECEPTACLE, STRAIGHT BLADE, COMMERCIAL GRADE, SELF GROUNDING, , , SIDE WIRED, STEEL STRAP, - GRAY
• Category: Receptacles & Surge Protectors
• Full Technical Description: Duplex, Narrow Type; Thermoplastic (Body/Face) Material; Gray Color; 5-20R Configuration; 3 Wire(S); Commercial, Specification Grade; UL 498, CSA C22.2, NOM Approval; 125 V Voltage Rating; 20 Ampere Current Rating; Self-Grounding; 2 Pole(S); Impact Resistant; Side Wiring; Applicable Standard ANSI C73, NEMA Wd-6; Power Rating 1 HP; Material Brass (Contact), Zinc Plated Steel (Strap); Temperature Rating -40 to 60 Deg C; SERIES CR20 Model
• Made In Usa: Yes
• Manufacturer: LEVITON MFG CO.
• Manufacturer Brand: Leviton Mfg. Co., Inc.
• Sub Category: Duplex/Single Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 078477815441
• SKU Name: lev cr20gy
