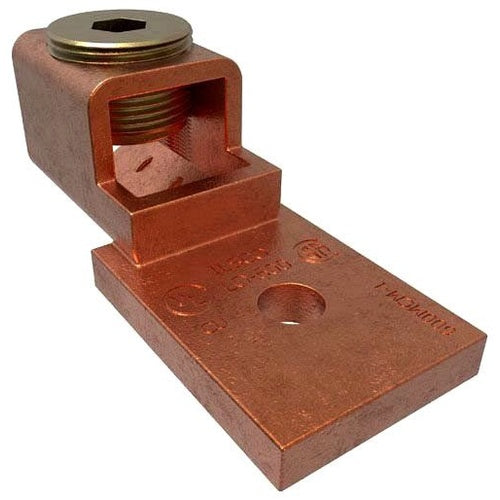

Ilsco LO-600 600mcm Copper Terminal Lug

Product Specifications

• UPC: 78366957425
• Material: Electrolytic Seamless Copper
• Number Of Pad Holes: 1
• Pad Size: 1-11/16 Inch L x 1-1/2 Inch W
• Stud Size: 3/8 Inch
• Overall Length: 3-5/8 Inch
• Approval: UL 453G, UL 486A/B, CSA
• Additional Information: Size 1-1/2 Inch H; Temperature Rating 90 Deg C; Packaging Quantity 6
• Catalog Number: LO-600
• Model: LO
• Number Of Conductors: 1
• Minimum Conductor Size: 1 AWG
• Maximum Conductor Size: 600 KCMIL
• Conductor Material: Copper
• Pad Type: Straight
• Screw Type: 3/8 Inch Hex
• Catalog Description: COPPER MECHANICAL LUG, CONDUCTOR RANGE 600-1, 1 PORT, 1 HOLE, 3/8IN BOLT SIZE, SEAMLESS, UL, CSA
• Category: Large Terminals & Connectors
• Full Technical Description: Electrolytic Seamless Copper Material; 3-5/8 Inch Overall Length; 1 AWG min. Conductor Size; 600 kcmil Max. Conductor Size; Copper Conductor Material; UL 453G, UL 486A/B, CSA Approval; 1 Conductor(S); 3/8 Inch Stud Size; 1-11/16 Inch L X 1-1/2 Inch W Pad Size; 1 Pad Hole(S); Straight Pad Type; 3/8 Inch Hex Screw Type; Size 1-1/2 Inch H; Temperature Rating 90 Deg C; Packaging Quantity 6; LO Model
• Manufacturer: ILSCO CORP
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 783669574258
• SKU Name: lo600 ilsco
