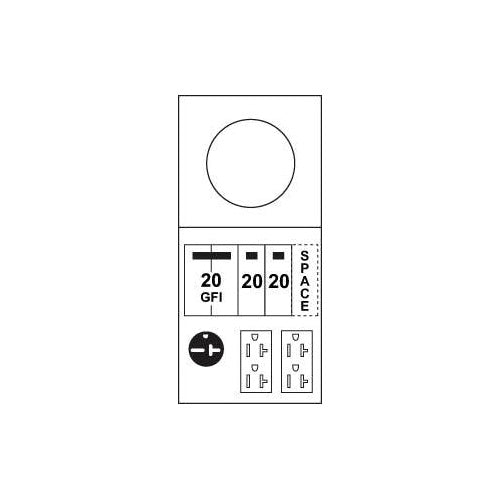

Midwest M038C033 100A Surface Metered 20-GFCI/20-GFCI

Overview

Midwest M038C033 100A Surface Metered 20-GFCI/20-GFCI

Product Specifications

• UPC: 78456756482
• Third Position Circuit Breaker Type: CB120
• Wire Size: 6 to 1/0 AWG Stranded (Copper/Aluminum, Line), 14 to 10 AWG Solid/Stranded (Copper, Load), 12 to 8 AWG Solid/12 to 1/0 AWG Stranded (Copper, Neutral Large Hole), 10 to 8 AWG Solid/10 to 1/0 AWG Stranded (Aluminum, Neutral Large Hole), 14 to 8 AWG Solid/14
• Material: G90 Galvanized Steel
• Finish: Zinc Coated
• Enclosure: NEMA 3R
• Approval: UL, CUL
• Additional Information: Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 9-3/4 Inch W x 5-3/16 Inch D x 30 Inch H; Mounting Surface
• Catalog Number: M038C033
• Type: Metered Ring
• Current Rating: 100 Ampere
• Circuit Configuration: 1-Phase
• Left Position Receptacle Type: 6-20R
• Center Position Receptacle Type: (2) 5-20R2GFCI
• First Position Circuit Breaker Type: GFI220
• Second Position Circuit Breaker Type: (2) CB120
• Catalog Description: MIDWEST ELECTRICS RV EQUIPMENT ARE A MEANS OF PROVIDING POWER REQUIRED BY VARIOUS RV PARKS.RV EQUIPMENT OFFER ONE OR MORE RECEPTACLES, WITH OVERCURRENT PROTECTION, OPTIONAL METERING, AND/OR PEDESTAL MOUNTING FUNCTIONS, IN A SINGLE ENCLOSURE OF G-90 ZINC-COATED STEEL. THE NEMA 3R RAINPROOF ENCLOSURE IS LOCKABLE AND ENGINEERED TO PROVIDE MAXIMUM PROTECTION AGAINST WEATHER, VANDALISM, AND NORMAL FIELD USE.
• Category: Metered Power Outlet Panels
• Full Technical Description: Metered Ring Type; G90 Galvanized Steel Material; Zinc Coated Finish; 6 to 1/0 AWG Stranded (Copper/Aluminum, Line), 14 to 10 AWG Solid/Stranded (Copper, Load), 12 to 8 AWG Solid/12 to 1/0 AWG Stranded (Copper, Neutral Large Hole), 10 to 8 AWG Solid/10 to 1/0 AWG Stranded (Aluminum, Neutral Large Hole), 14 to 8 AWG Solid/14 to 4 AWG Stranded (Copper, Neutral Small Hole), 12 to 8 AWG Solid/12 to 4 AWG Stranded (Aluminum, Neutral Small Hole), 12 to 8 AWG Solid/12 to 2 AWG Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; NEMA 3R Enclosure; 100 Ampere Current Rating; 1-Phase Circuit Configuration; GFI220 First Position Circuit Breaker Type; 6-20R Left Position Receptacle Type; CB120 Third Position Circuit Breaker Type; (2) CB120 Second Position Circuit Breaker Type; (2) 5-20R2GFCI Center Position Receptacle Type; Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 9-3/4 Inch W X 5-3/16 Inch D X 30 Inch H; Mounting Surface
• Manufacturer: Midwest Electric Products, Inc.
• Manufacturer Brand: Midwest Electric Products, Inc.
• Sub Category: Outdoor Surface Mount Power Outlet Panel
• Unspsc: 23153407
• UPC 12 Digit: 784567564822
• SKU Name: m038c033 midwest
