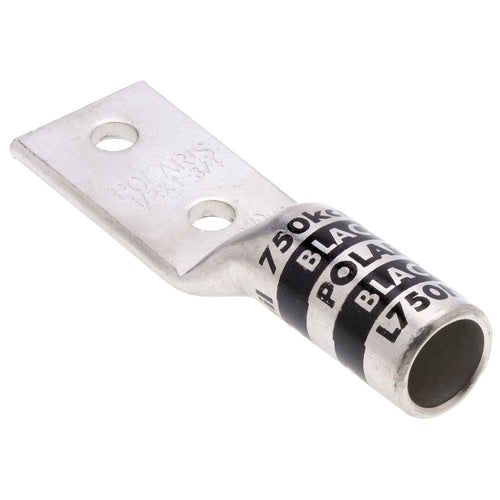

NSI L750N 750 MCM Copper Compression Lug, 1/2 Bolt Size, 2 Hole

Overview

NSI L750N 750 MCM Copper Compression Lug, 1/2 Bolt Size, 2 Hole

Product Specifications

• UPC: 66238103519
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1.75 Inch
• Stud Size: 1/2 Inch
• Color: Black
• Die Index: 17/24/473/106
• Material: Tin Plated Copper
• Overall Length: 6.3 Inch
• Approval: UL 486A/B, 467, UL (Canada and US)
• Additional Information: Inner Diameter 1.04 Inch; Outer Diameter 1.31 Inch; Temperature Rating 90 Deg C; Application Terminate, Splice, Tap Power Connectors
• Catalog Number: L750N
• Model: LN
• Voltage Rating: 600 V to 35 KV
• Conductor Material: Copper
• Conductor Size: 750 KCMIL
• Barrel Type: Long
• Barrel Length: 2.64 Inch
• Pad Size: 2.99 Inch L x 1.9 Inch W x 0.27 Inch Thk
• Catalog Description: 2 HOLE LONG BARREL COPPER COMPRESSION LUG 750 MCM-1/2" BOLT - 1 3/4" MOUNTING HOLE SPACING LONG BARREL COPPER COMPRESSION LUGS IS A TYPE OF COPPER COMPRESSION CONNECTOR THAT IS PRODUCED FROM HIGH CONDUCTIVITY COPPER TUBING. THEY ARE TIN-PLATED TO PROVIDE CORROSION RESISTANCE AND ARE MARKED WITH DIE INDEX AND COLOR CODED FOR EASY REFERENCE. LISTED FOR 35KV MAXIMUM WHEN PROPERLY INSTALLED.
• Category: Large Terminals & Connectors
• Full Technical Description: Tin Plated Copper Material; Black Color; 6.3 Inch Overall Length; 2.64 Inch Barrel Length; Copper Conductor Material; UL 486A/B, 467, UL (Canada and Us) Approval; 600 V to 35 kV Voltage Rating; 750 kcmil Conductor Size; 1/2 Inch Stud Size; 17/24/473/106 Die Index; 2.99 Inch L X 1.9 Inch W X 0.27 Inch Thk Pad Size; 2 Pad Hole(S); 1.75 Inch Pad Hole Spacing; Long Barrel Type; Inner Diameter 1.04 Inch; Outer Diameter 1.31 Inch; Temperature Rating 90 Deg C; Application Terminate, Splice, Tap Power Connectors; LN Model
• Manufacturer: NSi Industries, LLC
• Manufacturer Brand: NSi Industries, Inc.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 662381035196
• SKU Name: nsi l750n
